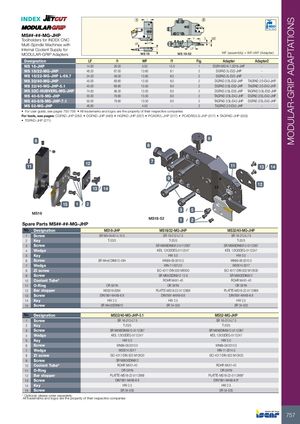

MODULAR-GRIP ADAPTATIONS 1 l1 2 150 Bar Max MS##-##-MG-JHP Toolholders for INDEX CNC l1 f1 WF Multi-Spindle Machines with WF LF Internal Coolant Supply for f1 LF MODULAR-GRIP Adapters MS 16 MS 18-52 WF (assembly) = WF+WF (Adapter) Designation LF l1 WF f1 Fig. Adapter Adapter2 MS 16-JHP 14.00 26.00 5.00 15.5 1 DGFH MS16-1.5D16-JHP - MS 18/22-MG-JHP 46.20 67.00 13.60 8.1 2 DGPAD 2L-D22-JHP - MS 18/22-MG-JHP L-69.7 24.20 48.00 13.60 8.0 2 DGPAD 2L-D22-JHP - MS 32/40-MG-JHP 45.00 69.80 13.50 8.0 2 DGPAD 2/3L-D32-JHP TAGPAD 2/3-D42-JHP MS 32/40-MG-JHP-5.1 45.00 69.80 13.50 8.0 2 DGPAD 2/3L-D32-JHP TAGPAD 2/3-D42-JHP MS 32C-HUBVERL-MG-JHP 74.50 99.30 13.50 8.0 2 DGPAD 2/3L-D32-JHP TAGPAD 2/3L-D32-JHP MS 40-6/8-MG-JHP 55.00 79.80 13.50 8.0 2 TAGPAD 2/3L-D42-JHP DGPAD 2/3L-D42-JHP MS 40-6/8-MG-JHP-7.1 55.00 79.80 13.50 8.0 2 TAGPAD 2/3L-D42-JHP DGPAD 2/3L-D42-JHP MS 52-MG-JHP 46.60 - 4.50 - 2 TAGPAD 2/3-D52-JHP - • For user guide, see pages 750-756 • All trademarks and logos are the property of their respective companies For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500) • TGPAD-JHP (271) 6 6 8 11 12 7 11 13 / 14 9 4 12 13 / 14 15 15 1 / 2 MS16 MS18-52 3 / 5 MS18-52 1 / 2 Spare Parts MS##-##-MG-JHP No. Designation MS16-JHP MS18/22-MG-JHP MS32/40-MG-JHP 1 Screw SR M5-04451-L10.5 SR 16-212-L7.5 SR 16-212-L7.5 2 Key T-20/5 T-20/5 T-20/5 3 Screw SR M6X6DIN6912-5112367 SR M6X6DIN6912-5112367 4 Wedge KEIL 12X30DEG-5112247 KEIL 12X30DEG-5112247 5 Key HW 5.0 HW 5.0 6 Screw SR M4x6 DIN913 45H WN99-08.0010.0 WN99-08.0010.0 7 Wedge WN-11.0012.0 W00014.0017 8 ZI screw ISO 4017-DIN 933 M8X30 ISO 4017-DIN 933 M10X30 9 Screw SR M6X20DIN912 12.9 SR M8X30DIN912 10 Coolant Tube* ROHR M4X1-40 ROHR M4X1-40 11 O-Ring OR 5X1N OR 5X1N OR 5X1N 12 Bar stopper W00019.0064 PLATTE-MS18-22-5112868 PLATTE-MS18-22-5112868 13 Screw DIN7991-M4X8-8.8 DIN7991-M4X8-8.8 DIN7991-M4X8-8.8 14 Key HW 2.5 HW 2.5 HW 2.5 15 Screw SR M4x30DIN912 SR 34-535 SR 34-535 No. Designation MS32/40-MG-JHP-5.1 MS52-MG-JHP 1 Screw SR 16-212-L7.5 SR 16-212-L7.5 2 Key T-20/5 T-20/5 3 Screw SR M6X6DIN6912-5112367 SR M6X6DIN6912-5112367 4 Wedge KEIL 12X30DEG-5112247 KEIL 12X30DEG-5112247 5 Key HW 5.0 HW 5.0 6 Screw WN99-08.0010.0 WN99-08.0010.0 7 Wedge W00014.0017 WN-11.0014.0 8 ZI screw ISO 4017-DIN 933 M10X30 ISO 4017-DIN 933 M10X30 9 Screw SR M8X30DIN912 10 Coolant Tube* ROHR M4X1-40 ROHR M4X1-40 11 O-Ring OR 5X1N OR 5X1N 12 Bar stopper PLATTE-MS18-22-5112868 PLATTE-MS18-22-5112868* 13 Screw DIN7991-M4X8-8.8 DIN7991-M4X8-8.8* 14 Key HW 2.5 HW 2.5 15 Screw SR 34-535 SR 34-535 * Optional, please order separately. All trademarks and logos are the property of their respective companies 757
