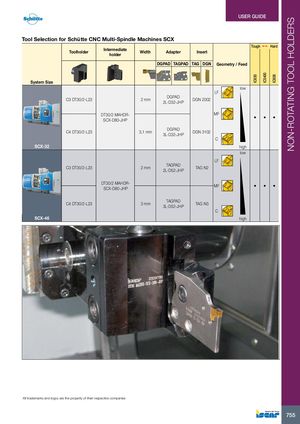

IC830 IC5400 IC808 NON-ROTATING TOOL HOLDERS USER GUIDE Tool Selection for Schütte CNC Multi-Spindle Machines SCX Tough 1  Hard Toolholder Intermediateholder Width Adapter Insert DGPAD TAGPAD TAG DGN Geometry / Feed System Size low LF C3 DT30/2-L23 2 mm DGPAD2L-D32-JHPDGN 2002 DT30/2 MAHDR-SCX-D80-JHP MF • • • C4 DT30/2-L23 3,1 mm DGPAD3L-D32-JHPDGN 3102 C SCX-32 high low LF C3 DT30/2-L23 2 mm TAGPAD2L-D52-JHPTAG N2 DT30/2 MAHDR-SCX-D80-JHP MF • • • C4 DT30/2-L23 3 mm TAGPAD3L-D52-JHPTAG N3 C SCX-46 high All trademarks and logos are the property of their respective companies 755
