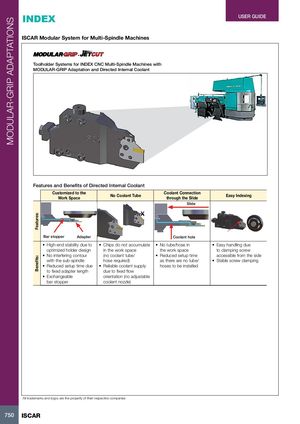

MODULAR-GRIP ADAPTATIONS Features:Benefits: USER GUIDE ISCAR Modular System for Multi-Spindle Machines · Toolholder Systems for INDEX CNC Multi-Spindle Machines with MODULAR-GRIP Adaptation and Directed Internal Coolant Features and Benefits of Directed Internal Coolant Customized to theWork Space No Coolant Tube Coolant Connectionthrough the SlideEasy Indexing Slide X Bar stopper Adapter Coolant hole • High-end stability due to • Chips do not accumulate • No tube/hose in • Easy handling due optimized holder design in the work space the work space to clamping screw • No interfering contour (no coolant tube/ • Reduced setup time accessible from the side with the sub-spindle hose required) as there are no tube/ • Stable screw clamping • Reduced setup time due • Reliable coolant supply hoses to be installed to fixed adapter length due to fixed flow • Exchangeable orientation (no adjustable bar stopper coolant nozzle) All trademarks and logos are the property of their respective companies 750 ISCAR
