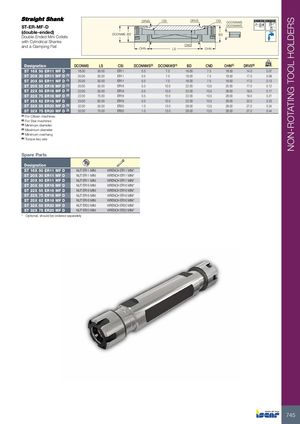

NON-ROTATING TOOL HOLDERS DRVS CSI DRVS CSI DCONNWS A 0.005 A 58-60 HRc ST-ER-MF-D DCONXWS (double-ended) DCONMS BDDouble-Ended Mini Collets BD with Cylindrical Shanks and a Clamping Flat CNDOHNLS OHN Designation DCONMS LS CSI DCONNWS(3) DCONXWS(4) BD CND OHN(5) DRVS(6) kg ST 16X 50 ER11 MF D 16.00 50.00 ER11 0.5 7.0 16.00 7.5 18.50 14.0 0.07 ST 20X 30 ER11 MF D (1) 20.00 30.00 ER11 0.5 7.0 16.00 7.5 18.50 17.0 0.09 ST 20X 50 ER11 MF D (1) 20.00 50.00 ER11 0.5 7.0 16.00 7.5 18.50 17.0 0.13 ST 20X 55 ER16 MF D (1) 20.00 55.00 ER16 0.5 10.0 22.00 10.5 25.00 17.0 0.12 ST 22X 55 ER16 MF D (2) 22.00 55.00 ER16 0.5 10.0 22.00 10.5 28.00 19.0 0.17 ST 22X 75 ER16 MF D (2) 22.00 75.00 ER16 0.5 10.0 22.00 10.5 28.00 19.0 0.21 ST 25X 62 ER16 MF D 25.00 62.00 ER16 0.5 10.0 22.00 10.5 28.00 22.0 0.23 ST 32X 55 ER20 MF D (2) 32.00 55.00 ER20 1.0 13.0 28.00 13.5 28.00 27.0 0.34 ST 32X 75 ER20 MF D (2) 32.00 75.00 ER20 1.0 13.0 28.00 13.5 28.00 27.0 0.44 (1) For Citizen machines (2) For Star machines (3) Minimum diameter (4) Maximum diameter (5) Minimum overhang (6) Torque key size Spare Parts Designation ST 16X 50 ER11 MF D NUT ER11 MINI WRENCH ER11 MINI* ST 20X 30 ER11 MF D NUT ER11 MINI WRENCH ER11 MINI* ST 20X 50 ER11 MF D NUT ER11 MINI WRENCH ER11 MINI* ST 20X 55 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI* ST 22X 55 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI* ST 22X 75 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI* ST 25X 62 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI* ST 32X 55 ER20 MF D NUT ER20 MINI WRENCH ER20 MINI* ST 32X 75 ER20 MF D NUT ER20 MINI WRENCH ER20 MINI* * Optional, should be ordered separately 745
