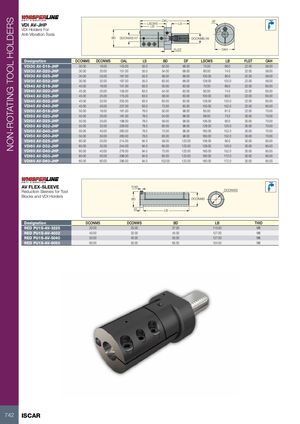

| OAL | D | F | ||||||||
| VDI AV-JHP VDI Holders For | LSCWS LB | LS | ||||||||
| Anti-Vibration Tools | ||||||||||
| DCONWS H7 BD | DCONMS h6 | |||||||||
| FLGT | OAH | |||||||||
| Designation | DCONMS | DCONWS | OAL | LS | BD | DF | LSCWS | LB | FLGT | OAH |
| VDI30 AV-D16-JHP | 30.00 | 16.00 | 143.00 | 55.0 | 50.00 | 68.00 | 70.00 | 66.0 | 22.00 | 56.00 |
| VDI30 AV-D20-JHP | 30.00 | 20.00 | 151.00 | 55.0 | 54.00 | 68.00 | 80.00 | 74.0 | 22.00 | 56.00 |
| VDI30 AV-D25-JHP | 30.00 | 25.00 | 167.00 | 55.0 | 58.00 | 68.00 | 100.00 | 90.0 | 22.00 | 56.00 |
| VDI30 AV-D32-JHP | 30.00 | 32.00 | 197.00 | 55.0 | 63.00 | 68.00 | 128.00 | 120.0 | 22.00 | 56.00 |
| VDI40 AV-D16-JHP | 40.00 | 16.00 | 151.00 | 63.0 | 50.00 | 83.00 | 70.00 | 66.0 | 22.00 | 65.00 |
| VDI40 AV-D20-JHP | 40.00 | 20.00 | 159.00 | 63.0 | 54.00 | 83.00 | 80.00 | 74.0 | 22.00 | 65.00 |
| VDI40 AV-D25-JHP | 40.00 | 25.00 | 175.00 | 63.0 | 58.00 | 83.00 | 100.00 | 90.0 | 22.00 | 65.00 |
| VDI40 AV-D32-JHP | 40.00 | 32.00 | 205.00 | 63.0 | 63.00 | 83.00 | 128.00 | 120.0 | 22.00 | 65.00 |
| VDI40 AV-D40-JHP | 40.00 | 40.00 | 237.00 | 63.0 | 73.00 | 83.00 | 150.00 | 152.0 | 22.00 | 65.00 |
| VDI50 AV-D16-JHP | 50.00 | 16.00 | 181.00 | 78.0 | 50.00 | 98.00 | 85.00 | 81.0 | 22.00 | 70.00 |
| VDI50 AV-D20-JHP | 50.00 | 20.00 | 181.00 | 78.0 | 54.00 | 98.00 | 89.00 | 73.0 | 30.00 | 70.00 |
| VDI50 AV-D25-JHP | 50.00 | 25.00 | 198.00 | 78.0 | 59.00 | 98.00 | 106.00 | 90.0 | 30.00 | 70.00 |
| VDI50 AV-D32-JHP | 50.00 | 32.00 | 228.00 | 78.0 | 65.00 | 98.00 | 128.00 | 120.0 | 30.00 | 70.00 |
| VDI50 AV-D40-JHP | 50.00 | 40.00 | 260.00 | 78.0 | 73.00 | 98.00 | 160.00 | 152.0 | 30.00 | 70.00 |
| VDI50 AV-D50-JHP | 50.00 | 50.00 | 260.00 | 78.0 | 83.00 | 98.00 | 160.00 | 152.0 | 30.00 | 70.00 |
| VDI60 AV-D25-JHP | 60.00 | 25.00 | 214.00 | 94.0 | 59.00 | 123.00 | 106.00 | 90.0 | 30.00 | 85.00 |
| VDI60 AV-D32-JHP | 60.00 | 32.00 | 244.00 | 94.0 | 65.00 | 123.00 | 128.00 | 120.0 | 30.00 | 85.00 |
| VDI60 AV-D40-JHP | 60.00 | 40.00 | 276.00 | 94.0 | 73.00 | 123.00 | 160.00 | 152.0 | 30.00 | 85.00 |
| VDI60 AV-D50-JHP | 60.00 | 50.00 | 296.00 | 94.0 | 83.00 | 123.00 | 180.00 | 172.0 | 30.00 | 85.00 |
| VDI60 AV-D60-JHP | 60.00 | 60.00 | 296.00 | 94.0 | 102.00 | 123.00 | 180.00 | 172.0 | 30.00 | 85.00 |
| AV FLEX-SLEEVE Reduction Sleeves for Tool Blocks and VDI Holders | DCONMS DCONWS LB 10 BD THID | |
| Designation | DCONMS | DCONWS BD LB THID |
| RED PU1S-AV-3225 | 32.00 | 25.00 37.00 115.00 M6 |
| RED PU1S-AV-4032 | 40.00 | 32.00 45.00 127.00 M6 |
| RED PU1S-AV-5040 | 50.00 | 40.00 55.00 127.00 M6 |
| RED PU1S-AV-6050 | 60.00 | 50.00 65.00 154.00 M6 |
