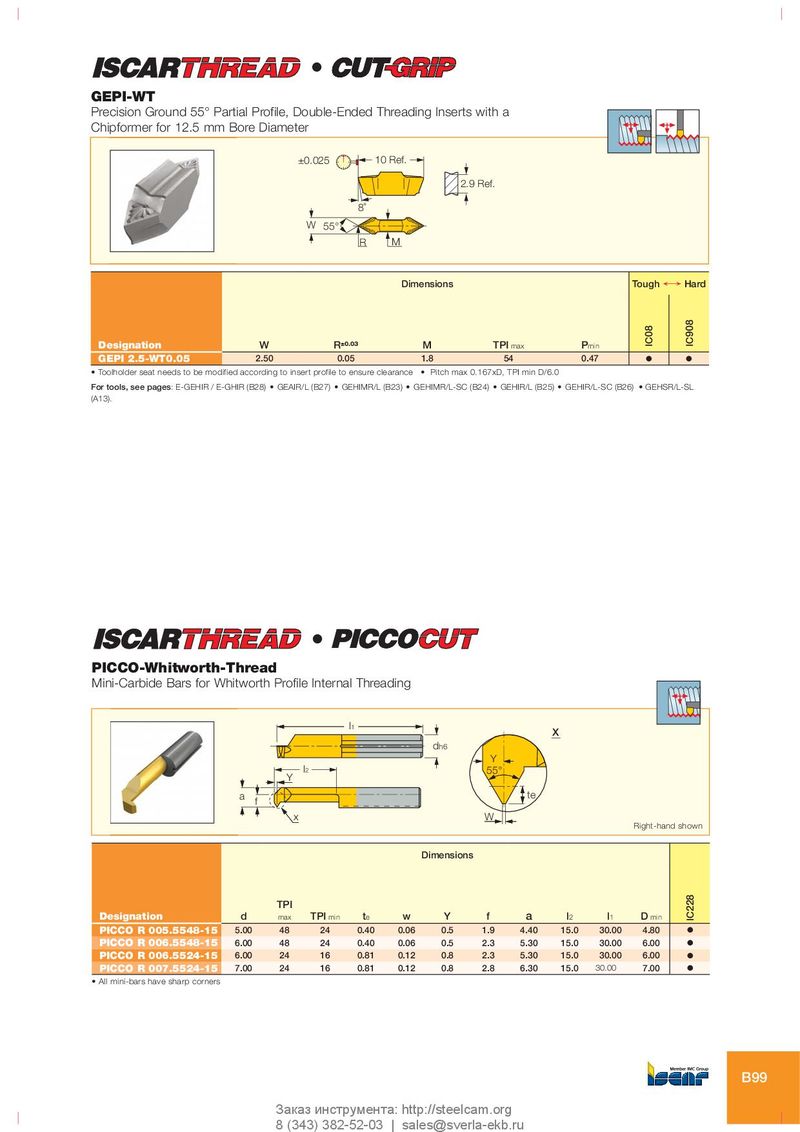

GEPI-WT
Precision Ground 55° Partial Profile, Double-Ended Threading Inserts with a
Chipformer for 12.5 mm Bore Diameter
| 8˚ 55° W R ±0.025 | 10 Ref. 2.9 Ref. M | |||||
| Dimensions | Tough | �Hard | ||||
| Designation | W | R±0.03 | M TPImax | Pmin | IC08 | IC908 |
| GEPI 2.5-WT0.05 | 2.50 | 0.05 | 1.8 54 | 0.47 | � | � |
- Toolholder seat needs to be modified according to insert profile to ensure clearance
- Pitch max 0.167xD, TPI min D/6.0
For tools, see pages: E-GEHIR / E-GHIR (B28) GEAIR/L (B27) GEHIMR/L (B23) GEHIMR/L-SC (B24) GEHIR/L (B25) GEHIR/L-SC (B26) GEHSR/L-SL (A13).
O
PICCO-Whitworth-Thread
Mini-Carbide Bars for Whitworth Profile Internal Threading
| a f | l2 Y x | l1 | dh6 | W 55° Y | te | X | Right-han | d shown | |||
| D | imensio | ns | |||||||||
| Designation | d | TPI max TPImin | te | w | Y | f | a | l2 | l1 | Dmin | IC228 |
| PICCO R 005.5548-15 | 5.00 | 48 24 | 0.40 | 0.06 | 0.5 | 1.9 | 4.40 | 15.0 | 30.00 | 4.80 | � |
| PICCO R 006.5548-15 | 6.00 | 48 24 | 0.40 | 0.06 | 0.5 | 2.3 | 5.30 | 15.0 | 30.00 | 6.00 | � |
| PICCO R 006.5524-15 | 6.00 | 24 16 | 0.81 | 0.12 | 0.8 | 2.3 | 5.30 | 15.0 | 30.00 | 6.00 | � |
| PICCO R 007.5524-15 | 7.00 | 24 16 | 0.81 | 0.12 | 0.8 | 2.8 | 6.30 | 15.0 | 30.00 | 7.00 | � |
- All mini-bars have sharp corners
