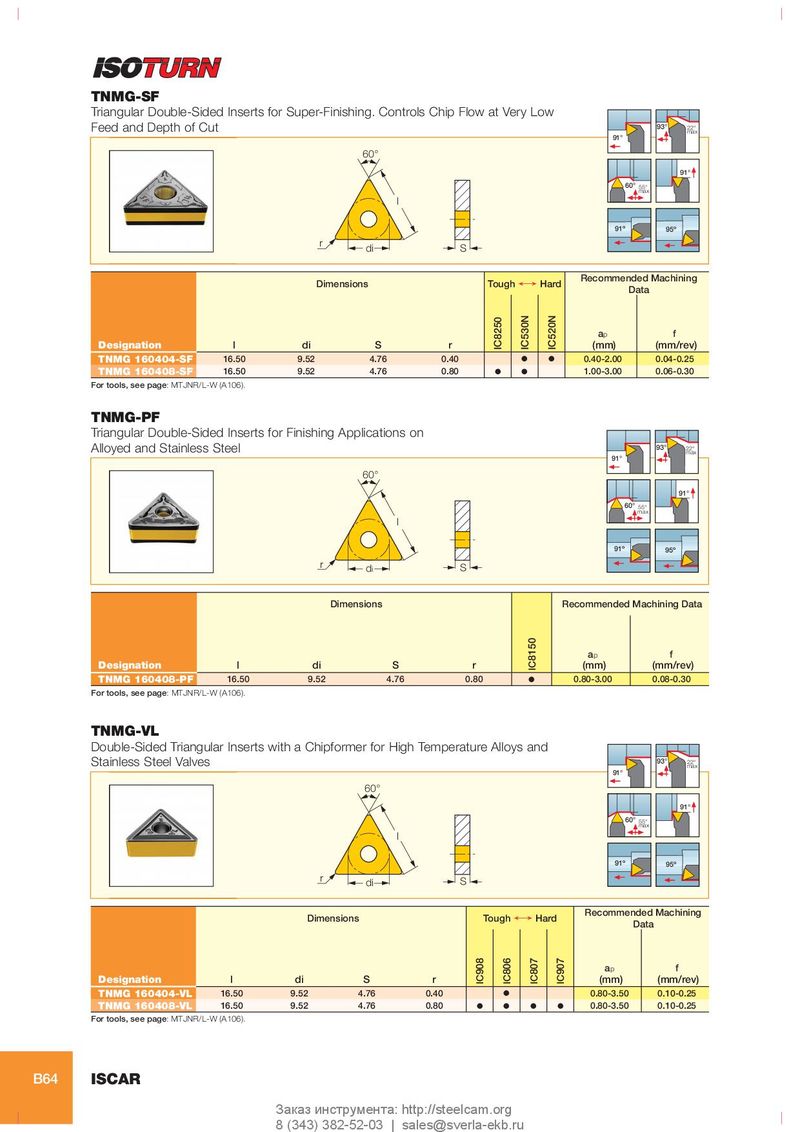

TNMG-SF
Triangular Double-Sided Inserts for Super-Finishing. Controls Chip Flow at Very Low
Feed and Depth of Cut
60°
l
r di S
Dimensions Tough ¥ Hard
93° 22° max 91°
91° 60° 55° max
91º 95º
Recommended Machining Data
| Designation | l | di | S | r |
| TNMG 160404-SF | 16.50 | 9.52 | 4.76 | 0.40 |
| TNMG 160408-SF | 16.50 | 9.52 | 4.76 | 0.80 |
For tools, see page: MTJNR/L-W (A106).
TNMG-PF
Triangular Double-Sided Inserts for Finishing Applications on
Alloyed and Stainless Steel
60°
l
r d S
i
Dimensions
O
O O
ap f (mm) (mm/rev)
O 0.40-2.00 0.04-0.25
1.00-3.00 0.06-0.30
93° 22° max 91°
91° 60° 55° max
91º 95º
Recommended Machining Data
| Designation | l | di | S | r | |
| TNMG 160408-PF | 16.50 | 9.52 | 4.76 | 0.80 | O |
For tools, see page: MTJNR/L-W (A106).
TNMG-VL
Double-Sided Triangular Inserts with a Chipformer for High Temperature Alloys and
Stainless Steel Valves
60°
l
r S di
Dimensions Tough ¥ Hard
ap f (mm) (mm/rev) 0.80-3.00 0.08-0.30
93° 22° max 91°
91° 60° 55° max
91º 95º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||
| TNMG 160404-VL | 16.50 | 9.52 | 4.76 | 0.40 | O | 0.80-3.50 | 0.10-0.25 | |||
| TNMG 160408-VL | 16.50 | 9.52 | 4.76 | 0.80 | O | O | O | O | 0.80-3.50 | 0.10-0.25 |
For tools, see page: MTJNR/L-W (A106).
