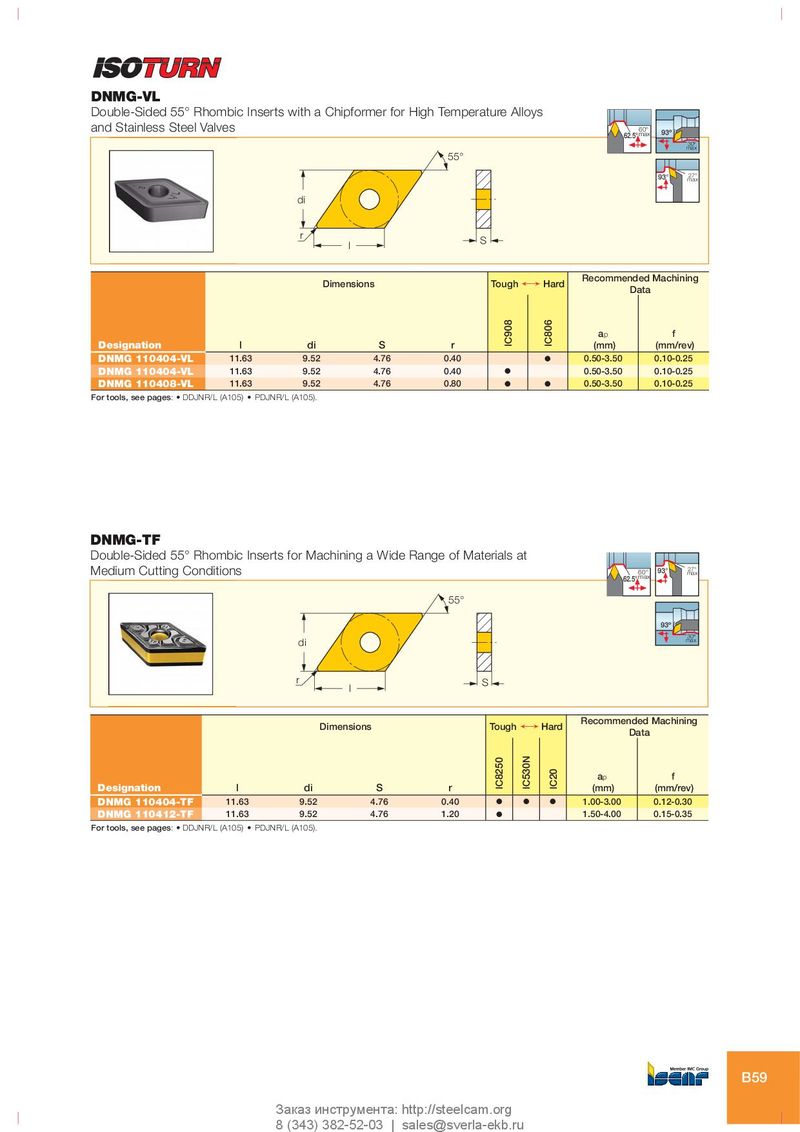

Каталог Iscar инструмент для внутренней обработки - страница 59

DNMG-VL
Double-Sided 55° Rhombic Inserts with a Chipformer for High Temperature Alloys
and Stainless Steel Valves 60°
62.5° max 93º
30º
max
55°
93° 27°
max

di

r S
l

Recommended Machining
Dimensions Tough ¥ Hard
Data


IC908

IC806
ap f
Designation l di S r (mm) (mm/rev)
DNMG 110404-VL 11.63 9.52 4.76 0.40 O 0.50-3.50 0.10-0.25
DNMG 110404-VL 11.63 9.52 4.76 0.40 O 0.50-3.50 0.10-0.25
DNMG 110408-VL 11.63 9.52 4.76 0.80 O O 0.50-3.50 0.10-0.25
For tools, see pages: • DDJNR/L (A105) • PDJNR/L (A105).


DNMG-TF
Double-Sided 55° Rhombic Inserts for Machining a Wide Range of Materials at
Medium Cutting Conditions 60°
62.5° max
93° 27°
max

55°
93º
30º
max
di

r S
l

Recommended Machining
Dimensions Tough ¥ Hard
Data
IC530N
IC8250


IC20


ap f
Designation l di S r (mm) (mm/rev)
DNMG 110404-TF 11.63 9.52 4.76 0.40 O O O 1.00-3.00 0.12-0.30
DNMG 110412-TF 11.63 9.52 4.76 1.20 O 1.50-4.00 0.15-0.35
For tools, see pages: • DDJNR/L (A105) • PDJNR/L (A105).


B59
