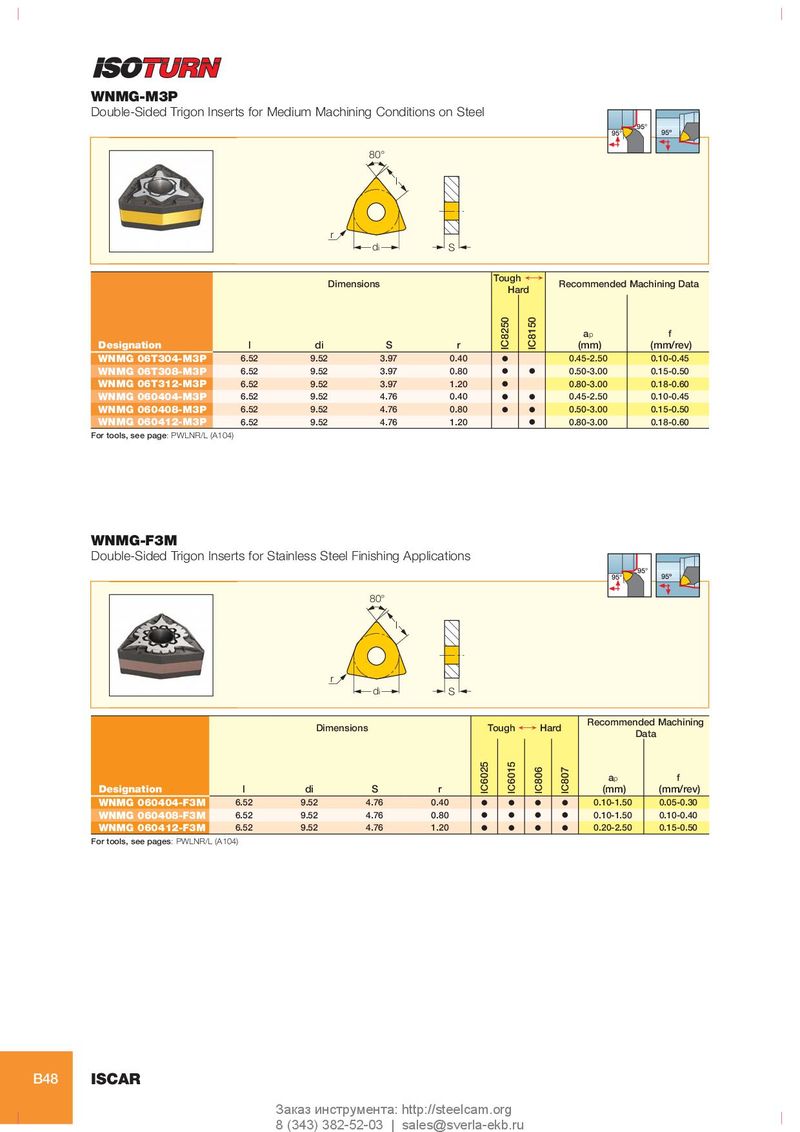

WNMG-M3P
Double-Sided Trigon Inserts for Medium Machining Conditions on Steel
95°
95° 95º

80°
l


r
di S
Tough ¥
Dimensions Recommended Machining Data
Hard


IC8250
IC8150
ap f
Designation l di S r (mm) (mm/rev)
WNMG 06T304-M3P 6.52 9.52 3.97 0.40 O 0.45-2.50 0.10-0.45
WNMG 06T308-M3P 6.52 9.52 3.97 0.80 O O 0.50-3.00 0.15-0.50
WNMG 06T312-M3P 6.52 9.52 3.97 1.20 O 0.80-3.00 0.18-0.60
WNMG 060404-M3P 6.52 9.52 4.76 0.40 O O 0.45-2.50 0.10-0.45
WNMG 060408-M3P 6.52 9.52 4.76 0.80 O O 0.50-3.00 0.15-0.50
WNMG 060412-M3P 6.52 9.52 4.76 1.20 O 0.80-3.00 0.18-0.60
For tools, see page: PWLNR/L (A104)


WNMG-F3M
Double-Sided Trigon Inserts for Stainless Steel Finishing Applications
95°
95° 95º

80°
l


r
di S
Recommended Machining
Dimensions Tough ¥ Hard
Data
IC6025
IC6015
IC806
IC807


ap f
Designation l di S r (mm) (mm/rev)
WNMG 060404-F3M 6.52 9.52 4.76 0.40 O O O O 0.10-1.50 0.05-0.30
WNMG 060408-F3M 6.52 9.52 4.76 0.80 O O O O 0.10-1.50 0.10-0.40
WNMG 060412-F3M 6.52 9.52 4.76 1.20 O O O O 0.20-2.50 0.15-0.50
For tools, see pages: PWLNR/L (A104)


B48 ISCAR
