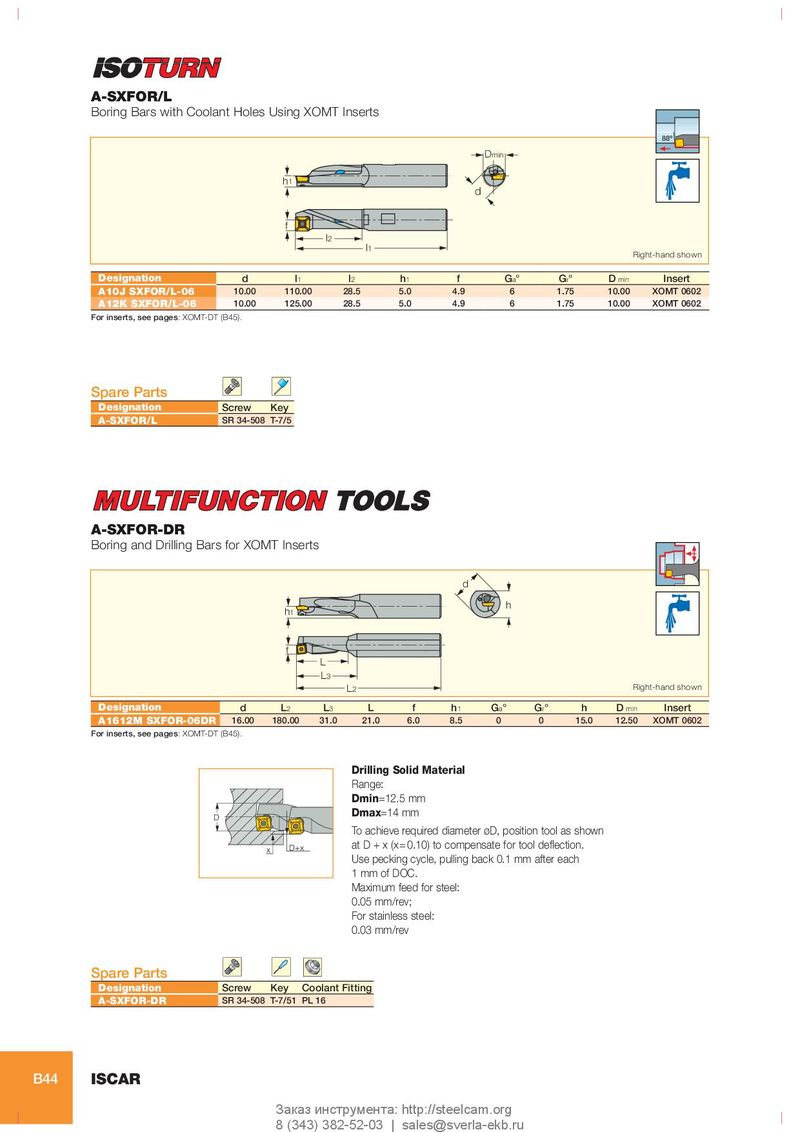

Каталог Iscar инструмент для внутренней обработки - страница 44
Навигация
Каталог Iscar инструментальные блоки
Фрезерные инструменты Iscar 2026
Каталог Iscar обработка канавок 2022
Каталог Iscar инструмент для нарезания резьбы
Токарные инструменты Iscar (часть 2) 2026
A-SXFOR/L
Boring Bars with Coolant Holes Using XOMT Inserts
h1
f l 2 l 1
| Designation | d | l1 | l2 |
| A10J SXFOR/L-06 | 10.00 | 110.00 | 28.5 |
| A12K SXFOR/L-06 | 10.00 | 125.00 | 28.5 |
For inserts, see pages: XOMT-DT (B45).
h1 5.0 5.0
88º Dmin
d
Right-hand shown
| f | Ga° | Gr° | D min | Insert |
| 4.9 | 6 | 1.75 | 10.00 | XOMT 0602 |
| 4.9 | 6 | 1.75 | 10.00 | XOMT 0602 |
Spare Parts
Designation Screw Key
A-SXFOR/L SR 34-508 T-7/5
A-SXFOR-DR
Boring and Drilling Bars for XOMT Inserts
d h h1
f L L3 L2 Right-hand shown
| Designation | d | L2 | L3 | L | f | h1 | Ga° | Gr° | h | D min | Insert |
| A1612M SXFOR-06DR | 16.00 | 180.00 | 31.0 | 21.0 | 6.0 | 8.5 | 0 | 0 | 15.0 | 12.50 | XOMT 0602 |
For inserts, see pages: XOMT-DT (B45).
D
x D+x
Drilling Solid Material Range: Dmin=12.5 mm Dmax=14 mm To achieve required diameter øD, position tool as shown at D + x (x = 0.10) to compensate for tool deflection. Use pecking cycle, pulling back 0.1 mm after each 1 mm of DOC. Maximum feed for steel: 0.05 mm/rev; For stainless steel: 0.03 mm/rev
Spare Parts
Designation Screw Key Coolant Fitting
A-SXFOR-DR SR 34-508 T-7/51 PL 16
