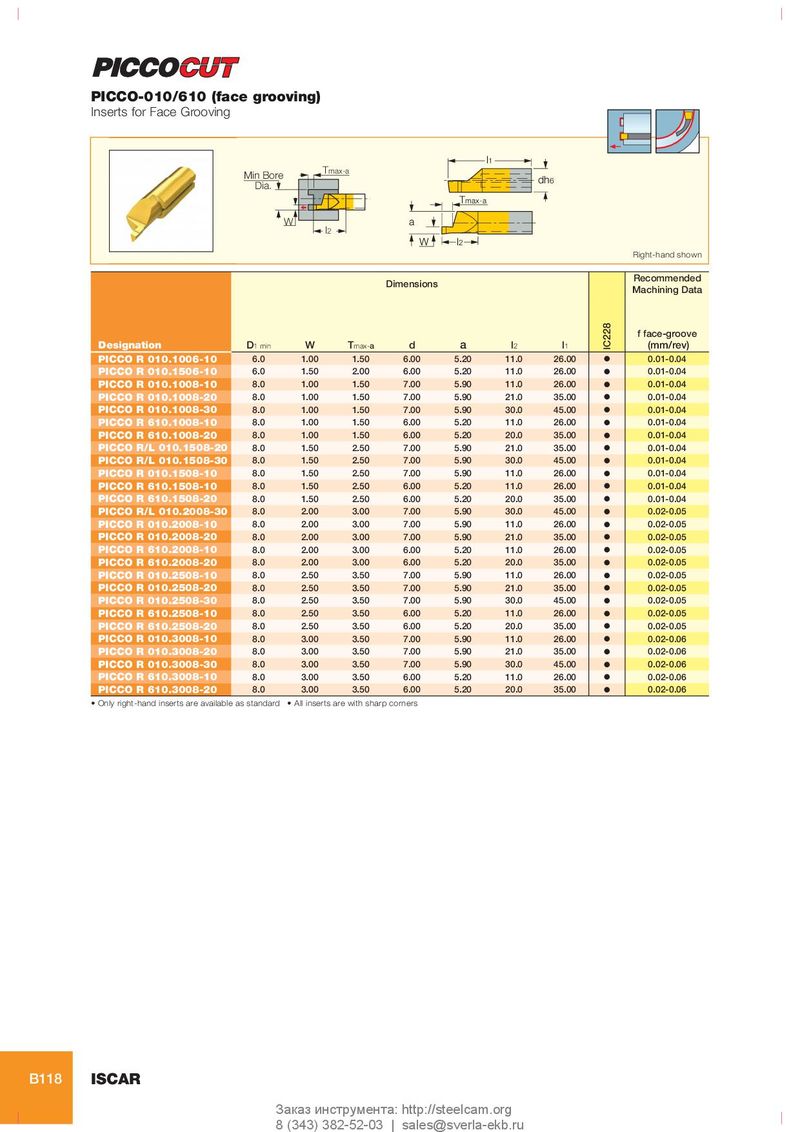

PICCO-010/610 (face grooving)
Inserts for Face Grooving
l1
Tmax-a
Min Bore dh6
Dia.
Tmax-a
W a
l2
W l2
Right-hand shown
Recommended
Dimensions
Machining Data
IC228
f face-groove
Designation D1 min W Tmax-a d a l2 l1 (mm/rev)
PICCO R 010.1006-10 6.0 1.00 1.50 6.00 5.20 11.0 26.00 O 0.01-0.04
PICCO R 010.1506-10 6.0 1.50 2.00 6.00 5.20 11.0 26.00 O 0.01-0.04
PICCO R 010.1008-10 8.0 1.00 1.50 7.00 5.90 11.0 26.00 O 0.01-0.04
PICCO R 010.1008-20 8.0 1.00 1.50 7.00 5.90 21.0 35.00 O 0.01-0.04
PICCO R 010.1008-30 8.0 1.00 1.50 7.00 5.90 30.0 45.00 O 0.01-0.04
PICCO R 610.1008-10 8.0 1.00 1.50 6.00 5.20 11.0 26.00 O 0.01-0.04
PICCO R 610.1008-20 8.0 1.00 1.50 6.00 5.20 20.0 35.00 O 0.01-0.04
PICCO R/L 010.1508-20 8.0 1.50 2.50 7.00 5.90 21.0 35.00 O 0.01-0.04
PICCO R/L 010.1508-30 8.0 1.50 2.50 7.00 5.90 30.0 45.00 O 0.01-0.04
PICCO R 010.1508-10 8.0 1.50 2.50 7.00 5.90 11.0 26.00 O 0.01-0.04
PICCO R 610.1508-10 8.0 1.50 2.50 6.00 5.20 11.0 26.00 O 0.01-0.04
PICCO R 610.1508-20 8.0 1.50 2.50 6.00 5.20 20.0 35.00 O 0.01-0.04
PICCO R/L 010.2008-30 8.0 2.00 3.00 7.00 5.90 30.0 45.00 O 0.02-0.05
PICCO R 010.2008-10 8.0 2.00 3.00 7.00 5.90 11.0 26.00 O 0.02-0.05
PICCO R 010.2008-20 8.0 2.00 3.00 7.00 5.90 21.0 35.00 O 0.02-0.05
PICCO R 610.2008-10 8.0 2.00 3.00 6.00 5.20 11.0 26.00 O 0.02-0.05
PICCO R 610.2008-20 8.0 2.00 3.00 6.00 5.20 20.0 35.00 O 0.02-0.05
PICCO R 010.2508-10 8.0 2.50 3.50 7.00 5.90 11.0 26.00 O 0.02-0.05
PICCO R 010.2508-20 8.0 2.50 3.50 7.00 5.90 21.0 35.00 O 0.02-0.05
PICCO R 010.2508-30 8.0 2.50 3.50 7.00 5.90 30.0 45.00 O 0.02-0.05
PICCO R 610.2508-10 8.0 2.50 3.50 6.00 5.20 11.0 26.00 O 0.02-0.05
PICCO R 610.2508-20 8.0 2.50 3.50 6.00 5.20 20.0 35.00 O 0.02-0.05
PICCO R 010.3008-10 8.0 3.00 3.50 7.00 5.90 11.0 26.00 O 0.02-0.06
PICCO R 010.3008-20 8.0 3.00 3.50 7.00 5.90 21.0 35.00 O 0.02-0.06
PICCO R 010.3008-30 8.0 3.00 3.50 7.00 5.90 30.0 45.00 O 0.02-0.06
PICCO R 610.3008-10 8.0 3.00 3.50 6.00 5.20 11.0 26.00 O 0.02-0.06
PICCO R 610.3008-20 8.0 3.00 3.50 6.00 5.20 20.0 35.00 O 0.02-0.06
• Only right-hand inserts are available as standard • All inserts are with sharp corners
B118 ISCAR
