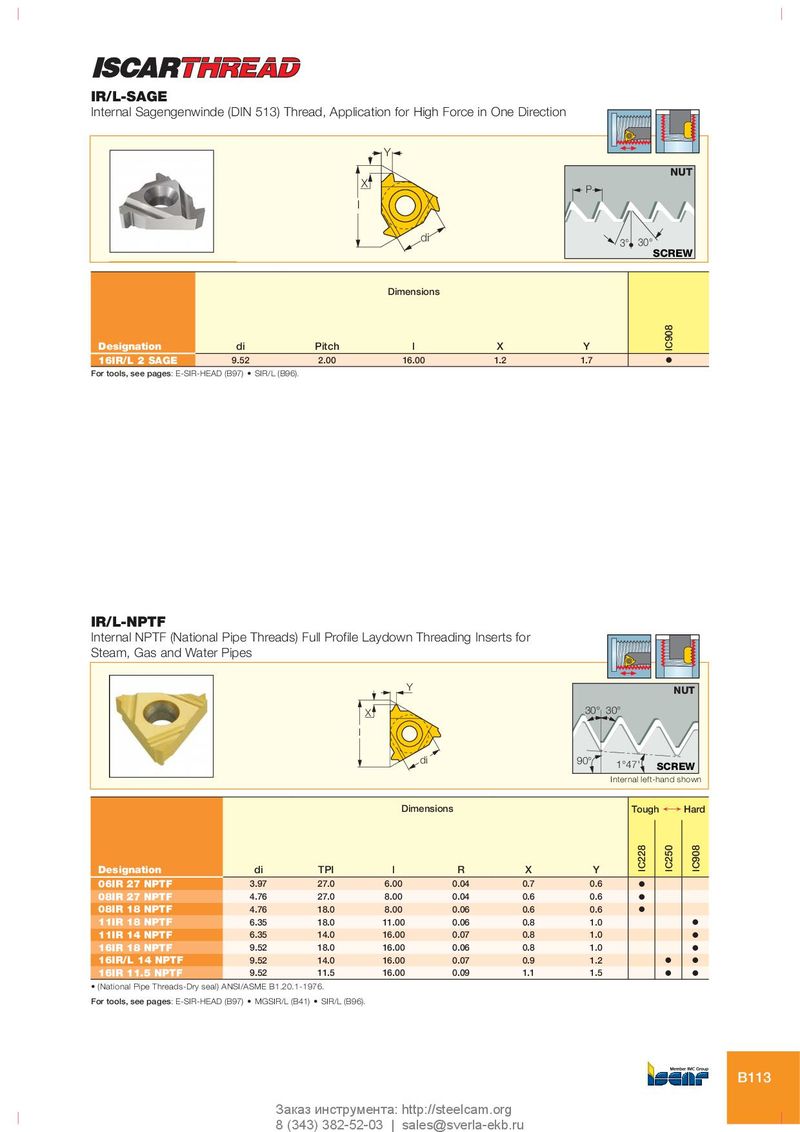

Каталог Iscar инструмент для внутренней обработки - страница 113

IR/L-SAGE
Internal Sagengenwinde (DIN 513) Thread, Application for High Force in One Direction

Y
NUT
X
P
l
di 3° 30°
SCREW

Dimensions


IC908
Designation di Pitch l X Y
16IR/L 2 SAGE 9.52 2.00 16.00 1.2 1.7 O
For tools, see pages: E-SIR-HEAD (B97) • SIR/L (B96).


IR/L-NPTF
Internal NPTF (National Pipe Threads) Full Profile Laydown Threading Inserts for
Steam, Gas and Water Pipes
Y NUT
X 30° 30°
l
di 90° 1°47' SCREW
Internal left-hand shown

Dimensions Tough ¥ Hard
IC228
IC250
IC908


Designation di TPI l R X Y
06IR 27 NPTF 3.97 27.0 6.00 0.04 0.7 0.6 O
08IR 27 NPTF 4.76 27.0 8.00 0.04 0.6 0.6 O
08IR 18 NPTF 4.76 18.0 8.00 0.06 0.6 0.6 O
11IR 18 NPTF 6.35 18.0 11.00 0.06 0.8 1.0 O
11IR 14 NPTF 6.35 14.0 16.00 0.07 0.8 1.0 O
16IR 18 NPTF 9.52 18.0 16.00 0.06 0.8 1.0 O
16IR/L 14 NPTF 9.52 14.0 16.00 0.07 0.9 1.2 O O
16IR 11.5 NPTF 9.52 11.5 16.00 0.09 1.1 1.5 O O
• (National Pipe Threads-Dry seal) ANSI/ASME B1.20.1-1976.
For tools, see pages: E-SIR-HEAD (B97) • MGSIR/L (B41) • SIR/L (B96).


B113
