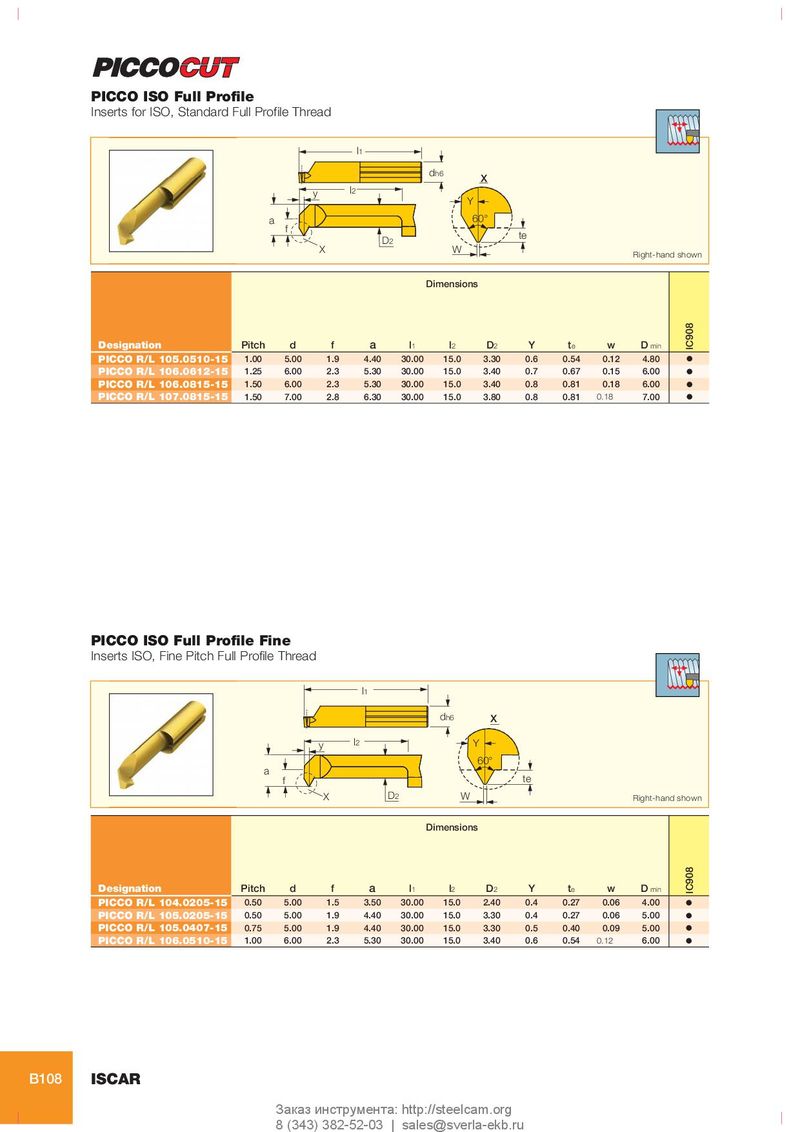

PICCO ISO Full Profile
Inserts for ISO, Standard Full Profile Thread
l1
dh6
X
y l2
Y
a 60°
f
D2 te
X W Right-hand shown

Dimensions


IC908
Designation Pitch d f a l1 l2 D2 Y te w D min
PICCO R/L 105.0510-15 1.00 5.00 1.9 4.40 30.00 15.0 3.30 0.6 0.54 0.12 4.80 O
PICCO R/L 106.0612-15 1.25 6.00 2.3 5.30 30.00 15.0 3.40 0.7 0.67 0.15 6.00 O
PICCO R/L 106.0815-15 1.50 6.00 2.3 5.30 30.00 15.0 3.40 0.8 0.81 0.18 6.00 O
PICCO R/L 107.0815-15 1.50 7.00 2.8 6.30 30.00 15.0 3.80 0.8 0.81 0.18 7.00 O


PICCO ISO Full Profile Fine
Inserts ISO, Fine Pitch Full Profile Thread
l1
dh6 X
y l2 Y
60°
a
f te
X D2 W Right-hand shown

Dimensions
IC908


Designation Pitch d f a l1 l2 D2 Y te w D min
PICCO R/L 104.0205-15 0.50 5.00 1.5 3.50 30.00 15.0 2.40 0.4 0.27 0.06 4.00 O
PICCO R/L 105.0205-15 0.50 5.00 1.9 4.40 30.00 15.0 3.30 0.4 0.27 0.06 5.00 O
PICCO R/L 105.0407-15 0.75 5.00 1.9 4.40 30.00 15.0 3.30 0.5 0.40 0.09 5.00 O
PICCO R/L 106.0510-15 1.00 6.00 2.3 5.30 30.00 15.0 3.40 0.6 0.54 0.12 6.00 O
