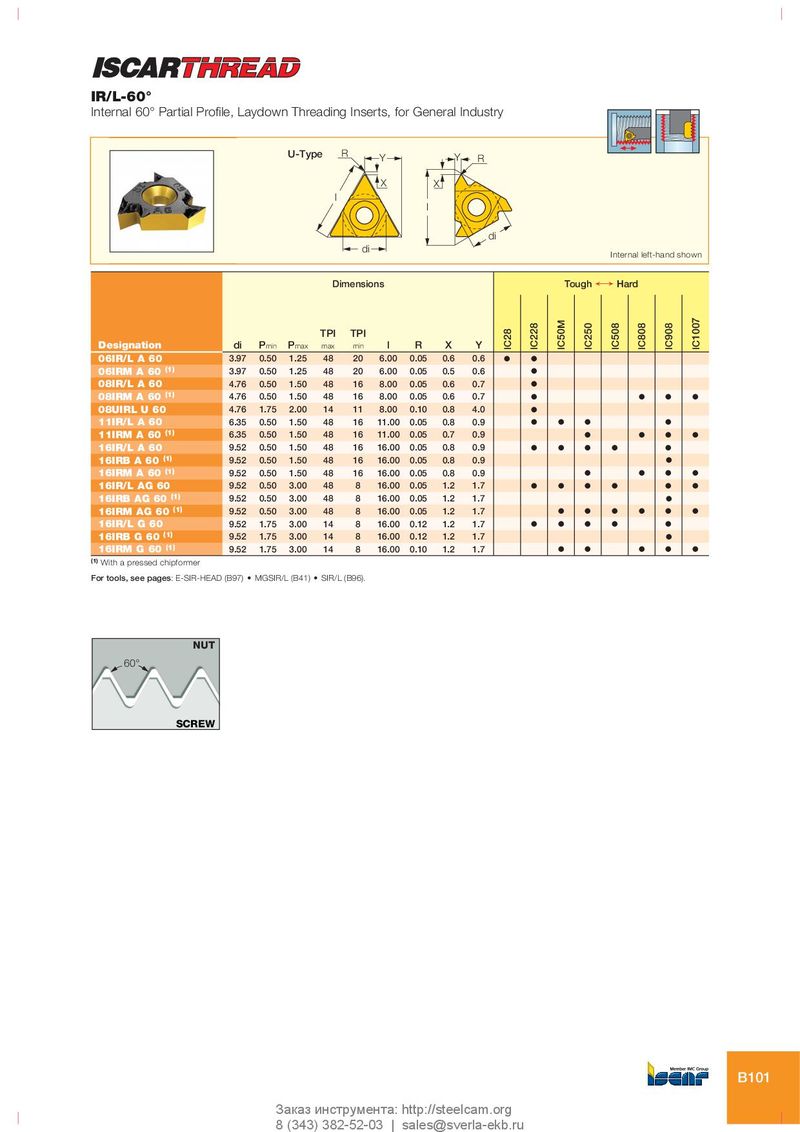

IR/L-60°
Internal 60° Partial Profile, Laydown Threading Inserts, for General Industry

U-Type R Y Y R
X X
l
l
di
di Internal left-hand shown

Dimensions Tough ¥ Hard


IC1007
IC50M
IC228


IC250
IC508
IC808
IC908
IC28
TPI TPI
Designation di Pmin Pmax max min l R X Y
06IR/L A 60 3.97 0.50 1.25 48 20 6.00 0.05 0.6 0.6 O O
06IRM A 60 (1) 3.97 0.50 1.25 48 20 6.00 0.05 0.5 0.6 O
08IR/L A 60 4.76 0.50 1.50 48 16 8.00 0.05 0.6 0.7 O
08IRM A 60 (1) 4.76 0.50 1.50 48 16 8.00 0.05 0.6 0.7 O O O O
08UIRL U 60 4.76 1.75 2.00 14 11 8.00 0.10 0.8 4.0 O
11IR/L A 60 6.35 0.50 1.50 48 16 11.00 0.05 0.8 0.9 O O O O
11IRM A 60 (1) 6.35 0.50 1.50 48 16 11.00 0.05 0.7 0.9 O O O O
16IR/L A 60 9.52 0.50 1.50 48 16 16.00 0.05 0.8 0.9 O O O O O
16IRB A 60 (1) 9.52 0.50 1.50 48 16 16.00 0.05 0.8 0.9 O
16IRM A 60 (1) 9.52 0.50 1.50 48 16 16.00 0.05 0.8 0.9 O O O O
16IR/L AG 60 9.52 0.50 3.00 48 8 16.00 0.05 1.2 1.7 O O O O O O
16IRB AG 60 (1) 9.52 0.50 3.00 48 8 16.00 0.05 1.2 1.7 O
16IRM AG 60 (1) 9.52 0.50 3.00 48 8 16.00 0.05 1.2 1.7 O O O O O O
16IR/L G 60 9.52 1.75 3.00 14 8 16.00 0.12 1.2 1.7 O O O O O
16IRB G 60 (1) 9.52 1.75 3.00 14 8 16.00 0.12 1.2 1.7 O
16IRM G 60 (1) 9.52 1.75 3.00 14 8 16.00 0.10 1.2 1.7 O O O O O
(1) With a pressed chipformer

For tools, see pages: E-SIR-HEAD (B97) • MGSIR/L (B41) • SIR/L (B96).


NUT
60°


SCREW


B101
