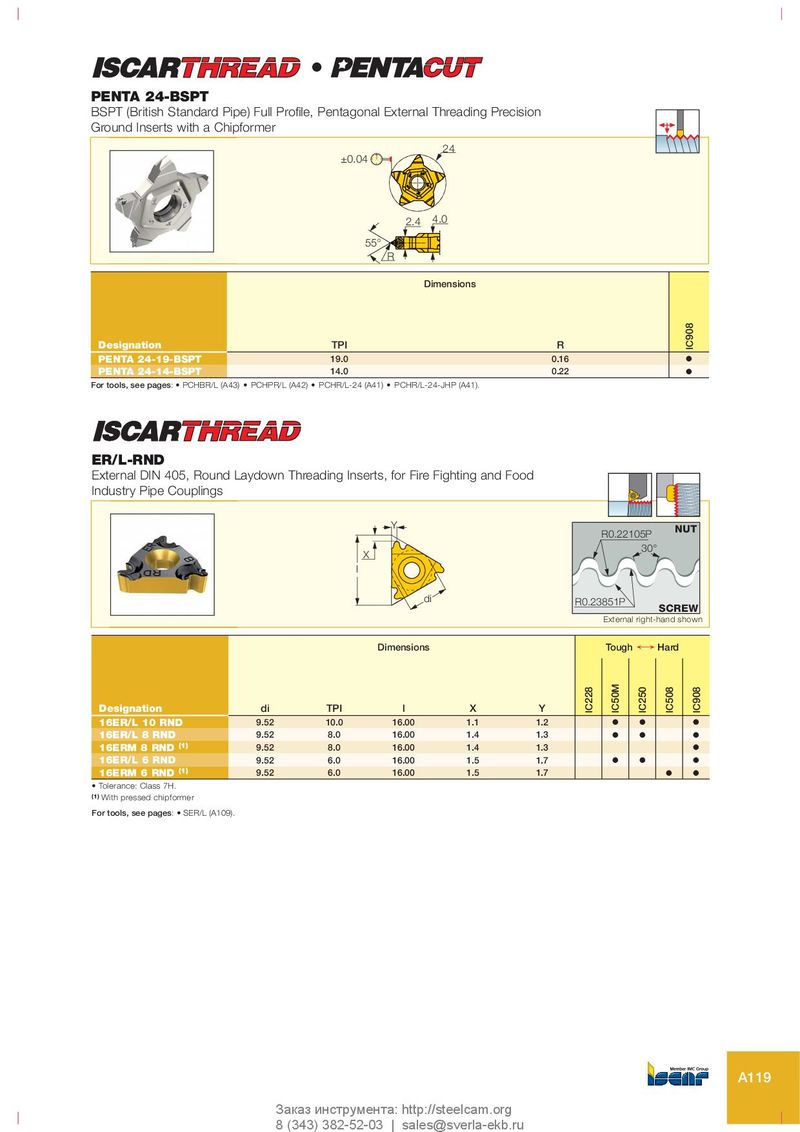

 O  PENTA 24-BSPT BSPT (British Standard Pipe) Full Profile, Pentagonal External Threading Precision Ground Inserts with a Chipformer 24 ±0.04 2.4 4.0 55° R Dimensions Designation TPI R IC908 PENTA 24-19-BSPT 19.0 0.16 O PENTA 24-14-BSPT 14.0 0.22 O For tools, see pages: • PCHBR/L (A43) • PCHPR/L (A42) • PCHR/L-24 (A41) • PCHR/L-24-JHP (A41). ER/L-RND External DIN 405, Round Laydown Threading Inserts, for Fire Fighting and Food Industry Pipe Couplings Y NUT R0.22105P 30° X l di R0.23851P SCREW External right-hand shown Dimensions Tough ¥ Hard Designation di TPI l X Y IC228 IC50M IC250 IC508 IC908 16ER/L 10 RND 9.52 10.0 16.00 1.1 1.2 O O O 16ER/L 8 RND 9.52 8.0 16.00 1.4 1.3 O O O 16ERM 8 RND (1) 9.52 8.0 16.00 1.4 1.3 O 16ER/L 6 RND 9.52 6.0 16.00 1.5 1.7 O O O 16ERM 6 RND (1) 9.52 6.0 16.00 1.5 1.7 O O • Tolerance: Class 7H. (1) With pressed chipformer For tools, see pages: • SER/L (A109). A119 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
