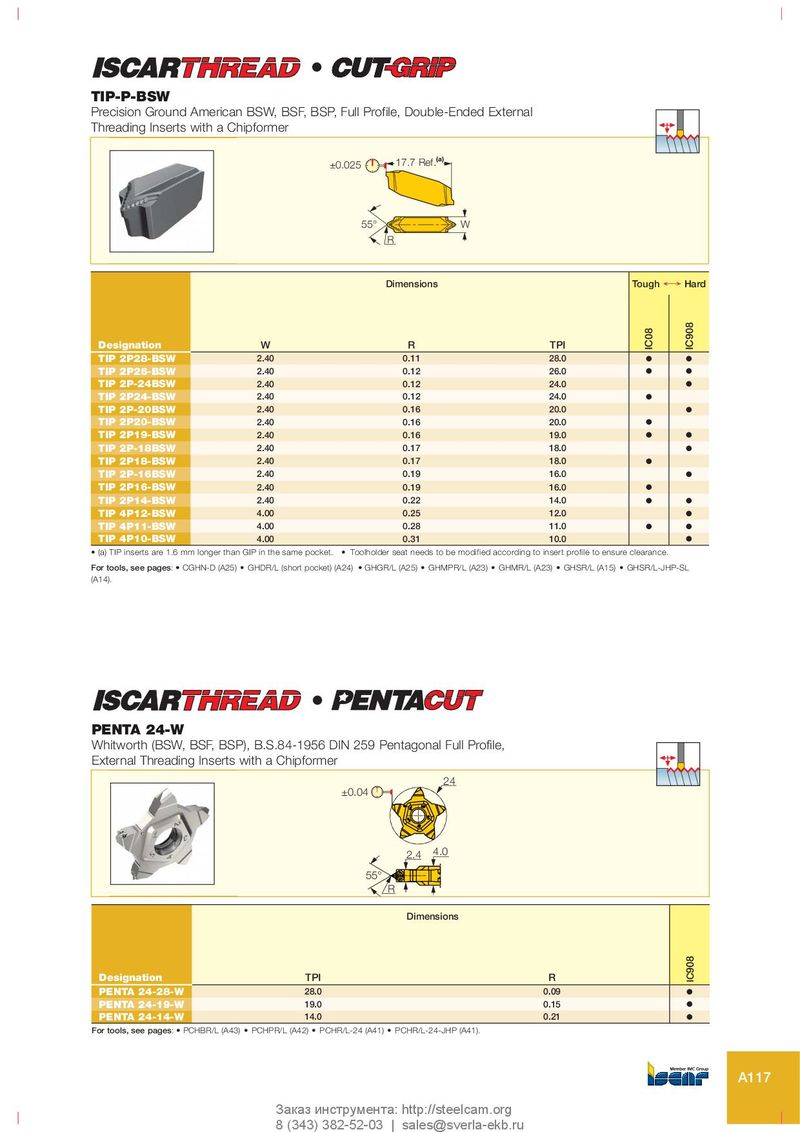

Каталог Iscar инструмент для мелкоразмерной обработки - страница 135

 O

TIP-P-BSW
Precision Ground American BSW, BSF, BSP, Full Profile, Double-Ended External
Threading Inserts with a Chipformer
±0.025 17.7 Ref.(a)


55° W
R

Dimensions Tough ¥ Hard


IC908
IC08
Designation W R TPI
TIP 2P28-BSW 2.40 0.11 28.0 O O
TIP 2P26-BSW 2.40 0.12 26.0 O O
TIP 2P-24BSW 2.40 0.12 24.0 O
TIP 2P24-BSW 2.40 0.12 24.0 O
TIP 2P-20BSW 2.40 0.16 20.0 O
TIP 2P20-BSW 2.40 0.16 20.0 O
TIP 2P19-BSW 2.40 0.16 19.0 O O
TIP 2P-18BSW 2.40 0.17 18.0 O
TIP 2P18-BSW 2.40 0.17 18.0 O
TIP 2P-16BSW 2.40 0.19 16.0 O
TIP 2P16-BSW 2.40 0.19 16.0 O
TIP 2P14-BSW 2.40 0.22 14.0 O O
TIP 4P12-BSW 4.00 0.25 12.0 O
TIP 4P11-BSW 4.00 0.28 11.0 O O
TIP 4P10-BSW 4.00 0.31 10.0 O
• (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance.
For tools, see pages: • CGHN-D (A25) • GHDR/L (short pocket) (A24) • GHGR/L (A25) • GHMPR/L (A23) • GHMR/L (A23) • GHSR/L (A15) • GHSR/L-JHP-SL
(A14).


 O

PENTA 24-W
Whitworth (BSW, BSF, BSP), B.S.84-1956 DIN 259 Pentagonal Full Profile,
External Threading Inserts with a Chipformer
24
±0.04


2.4 4.0
55°
R
Dimensions
IC908


Designation TPI R
PENTA 24-28-W 28.0 0.09 O
PENTA 24-19-W 19.0 0.15 O
PENTA 24-14-W 14.0 0.21 O
For tools, see pages: • PCHBR/L (A43) • PCHPR/L (A42) • PCHR/L-24 (A41) • PCHR/L-24-JHP (A41).


A117
