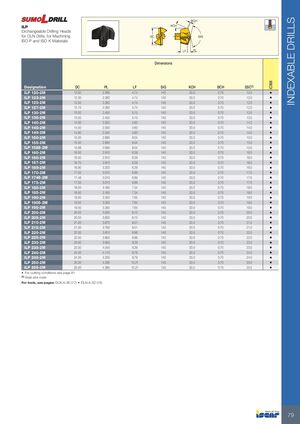

Инструменты для обработки отверстий Iscar 2026 - страница 81
Навигация
Каталог Iscar отрезка 2022
Каталог Iscar крепление инструмента
Токарные инструменты Iscar (часть 2) 2026
Каталог Iscar токарные державки ISO 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
СВЕРЛА СО СМЕННЫМИ ПЛАСТИНАМИ
Сменные буровые головки для сверл DLN, для обработки материалов ISO P и ISO K
Размеры
| Обозначение | DC | PL | LF | SIG | KCH | BCH | SSC(1) |
|---|---|---|---|---|---|---|---|
| ILP 120-2M | 12.00 | 2.260 | 4.74 | 140 | 30.0 | 0.70 | 12.0 |
| ILP 123-2M | 12.30 | 2.260 | 4.74 | 140 | 30.0 | 0.70 | 12.0 |
| ILP 125-2M | 12.50 | 2.260 | 4.74 | 140 | 30.0 | 0.70 | 12.0 |
| ILP 127-2M | 12.70 | 2.260 | 4.74 | 140 | 30.0 | 0.70 | 12.0 |
| ILP 130-2M | 13.00 | 2.450 | 5.15 | 140 | 30.0 | 0.70 | 13.0 |
| ILP 135-2M | 13.50 | 2.450 | 5.15 | 140 | 30.0 | 0.70 | 13.0 |
| ILP 140-2M | 14.00 | 2.550 | 5.60 | 140 | 30.0 | 0.70 | 14.0 |
| ILP 145-2M | 14.50 | 2.550 | 5.60 | 140 | 30.0 | 0.70 | 14.0 |
| ILP 149-2M | 14.90 | 2.550 | 5.60 | 140 | 30.0 | 0.70 | 14.0 |
| ILP 150-2M | 15.00 | 2.690 | 6.04 | 140 | 30.0 | 0.70 | 15.0 |
| ILP 155-2M | 15.50 | 2.690 | 6.04 | 140 | 30.0 | 0.70 | 15.0 |
| ILP 1588-2M | 15.88 | 2.690 | 6.04 | 140 | 30.0 | 0.70 | 15.0 |
| ILP 160-2M | 16.00 | 2.910 | 6.39 | 140 | 30.0 | 0.70 | 16.0 |
| ILP 165-2M | 16.50 | 2.910 | 6.39 | 140 | 30.0 | 0.70 | 16.0 |
| ILP 167-2M | 16.70 | 2.910 | 6.39 | 140 | 30.0 | 0.70 | 16.0 |
| ILP 169-2M | 16.90 | 3.200 | 6.39 | 140 | 30.0 | 0.70 | 16.0 |
| ILP 170-2M | 17.00 | 3.010 | 6.89 | 140 | 30.0 | 0.70 | 17.0 |
| ILP 1746-2M | 17.46 | 3.010 | 6.89 | 140 | 30.0 | 0.70 | 17.0 |
| ILP 175-2M | 17.50 | 3.010 | 6.89 | 140 | 30.0 | 0.70 | 17.0 |
| ILP 180-2M | 18.00 | 3.160 | 7.34 | 140 | 30.0 | 0.70 | 18.0 |
| ILP 185-2M | 18.50 | 3.160 | 7.34 | 140 | 30.0 | 0.70 | 18.0 |
| ILP 190-2M | 19.00 | 3.350 | 7.65 | 140 | 30.0 | 0.70 | 19.0 |
| ILP 1905-2M | 19.05 | 3.350 | 7.65 | 140 | 30.0 | 0.70 | 19.0 |
| ILP 195-2M | 19.50 | 3.350 | 7.65 | 140 | 30.0 | 0.70 | 19.0 |
| ILP 200-2M | 20.00 | 3.500 | 8.10 | 140 | 30.0 | 0.70 | 20.0 |
| ILP 205-2M | 20.50 | 3.600 | 8.10 | 140 | 30.0 | 0.70 | 20.0 |
| ILP 210-2M | 21.00 | 3.670 | 8.51 | 140 | 30.0 | 0.70 | 21.0 |
| ILP 215-2M | 21.50 | 3.760 | 8.51 | 140 | 30.0 | 0.70 | 21.0 |
| ILP 220-2M | 22.00 | 3.810 | 8.96 | 140 | 30.0 | 0.70 | 22.0 |
| ILP 225-2M | 22.50 | 3.900 | 8.96 | 140 | 30.0 | 0.70 | 22.0 |
| ILP 230-2M | 23.00 | 3.950 | 9.39 | 140 | 30.0 | 0.70 | 23.0 |
| ILP 235-2M | 23.50 | 4.040 | 9.39 | 140 | 30.0 | 0.70 | 23.0 |
| ILP 240-2M | 24.00 | 4.110 | 9.79 | 140 | 30.0 | 0.70 | 24.0 |
| ILP 245-2M | 24.50 | 4.200 | 9.79 | 140 | 30.0 | 0.70 | 24.0 |
| ILP 250-2M | 25.00 | 4.290 | 10.21 | 140 | 30.0 | 0.70 | 25.0 |
| ILP 255-2M | 25.50 | 4.380 | 10.21 | 140 | 30.0 | 0.70 | 25.0 |
(1) Код размера посадки
