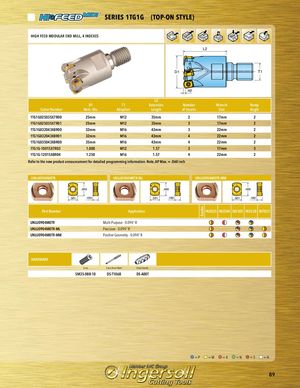

SERIES 1TG1G (TOP-ON STYLE)
HIGH FEED MODULAR END MILL, 4 INDEXES
| L2 D1 ap | T1 | ||||
| Cutter Number D1 Nom. Dia. | T1 Adaption | L2 Extension Length | Number of Inserts | Wrench Size | Ramp Angle |
| 1TG1G025035X7R00 25mm | M12 | 35mm | 2 | 17mm | 2 |
| 1TG1G025035X7R01 25mm | M12 | 35mm | 3 | 17mm | 2 |
| 1TG1G032043X8R00 32mm | M16 | 43mm | 3 | 22mm | 2 |
| 1TG1G032043X8R01 32mm | M16 | 43mm | 4 | 22mm | 2 |
| 1TG1G035043X8R00 35mm | M16 | 43mm | 4 | 22mm | 2 |
| 1TG1G-10015X7R03 1.000 | M12 | 1.57 | 3 | 17mm | 3 |
| 1TG1G-12015X8R04 1.250 | M16 | 1.57 | 4 | 22mm | 2 |
Refer to the new product announcement for detailed programming information. Note, AP Max. = .060 inch
UNLU0904M0TR UNLU0904M0TR-ML UNLU0904M0TR-MM
.469 .469 .469
.361 .189 .361 .189 .361 .189
Part Number Application ades IN2035 IN2504 IN2505 IN2530 IN7035
UNLU0904M0TR Multi-Purpose - 0.094“ R UNLU0904M0TR-ML Precision - 0.094“ R UNLU0904M0TR-MM Positive Geometry - 0.094“ R
HARDWARE
| Screw | Screw Driver Blade | Driver Handle | |
| SM35-088-10 | DS-T106B | DS-A00T |
