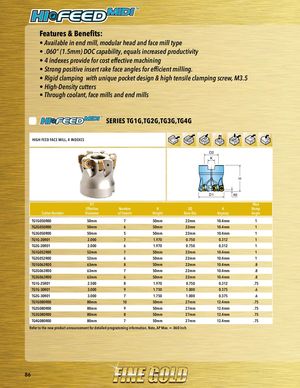

- Available in end mill, modular head and face mill type
- .060” (1.5mm) DOC capability, equals increased productivity
- 4 indexes provide for cost effective machining
- Strong positive insert rake face angles for efficient milling.
- Rigid clamping with unique pocket design & high tensile clamping screw, M3.5
- High-Density cutters
- Through coolant, face mills and end mills
SERIES TG1G,TG2G,TG3G,TG4G
HIGH FEED FACE MILL, 4 INDEXES D2 K
H
D1 ap
| D1 Effective | Number | H | D2 | K | Max Ramp | |
| Cutter Number | Diameter | of Inserts | Height | Bore Dia. | Keyway | Angle |
| TG1G050R00 | 50mm | 7 | 50mm | 22mm | 10.4mm | 1 |
| TG2G050R00 | 50mm | 6 | 50mm | 22mm | 10.4mm | 1 |
| TG3G050R00 | 50mm | 5 | 50mm | 22mm | 10.4mm | 1 |
| TG1G-20R01 | 2.000 | 7 | 1.970 | 0.750 | 0.312 | 1 |
| TG2G-20R01 | 2.000 | 6 | 1.970 | 0.750 | 0.312 | 1 |
| TG1G052R00 | 52mm | 7 | 50mm | 22mm | 10.4mm | 1 |
| TG2G052R00 | 52mm | 6 | 50mm | 22mm | 10.4mm | 1 |
| TG1G063R00 | 63mm | 8 | 50mm | 22mm | 10.4mm | .8 |
| TG2G063R00 | 63mm | 7 | 50mm | 22mm | 10.4mm | .8 |
| TG3G063R00 | 63mm | 6 | 50mm | 22mm | 10.4mm | .8 |
| TG1G-25R01 | 2.500 | 8 | 1.970 | 0.750 | 0.312 | .75 |
| TG1G-30R01 | 3.000 | 9 | 1.750 | 1.000 | 0.375 | .6 |
| TG2G-30R01 | 3.000 | 7 | 1.750 | 1.000 | 0.375 | .6 |
| TG1G080R00 | 80mm | 10 | 50mm | 27mm | 12.4mm | .75 |
| TG2G080R00 | 80mm | 9 | 50mm | 27mm | 12.4mm | .75 |
| TG3G080R00 | 80mm | 8 | 50mm | 27mm | 12.4mm | .75 |
| TG4G080R00 | 80mm | 7 | 50mm | 27mm | 12.4mm | .75 |
Refer to the new product announcement for detailed programming information. Note, AP Max. = .060 inch
