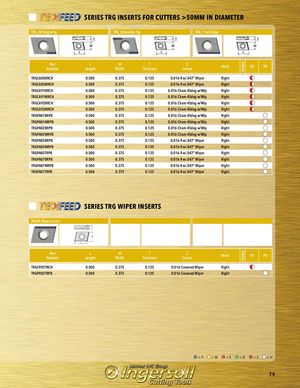

SERIES TRG INSERTS FOR CUTTERS >50MM IN DIAMETER
| TRGM Single-Tip | TRGB Double | --Tip | TRGT Full Ed | ge | ||
| Part Number | L Length | W Width | T Thickness C Corne | r | Hand | Grades CH PB |
| TRGCA05BRCH | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGCA05MRCH | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGCA91BRCH | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGCA91MRCH | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGCA92BRCH | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGCA92MRCH | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGPA01BRPB | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGPA01MRPB | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGPA02BRPB | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGPA02MRPB | 0.500 | 0.375 | 0.125 0.016 Cham 45 | deg w/Wip | Right | |
| TRGPA05BRPB | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGPA05MRPB | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGPA05TRPB | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGPA07BRPB | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGPA07MRPB | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGPA07TRPB | 0.500 | 0.375 | 0.125 0.016 R w/.0 | 47“ Wiper | Right | |
| TRGPR Wiper Insert | SERIES W T | TRG WIPE | R INSERTS | |||
| L | ||||||
| Part Number | L Length | W Width | T Thickness C Corne | r | Hand | Grades CH PB |
| TRGCR92TRCH | 0.500 | 0.375 | 0.125 0.016 Crown | ed Wiper | Right | |
| TRGPR02TRPB | 0.500 | 0.375 | 0.125 0.016 Crown | ed Wiper | Right |
