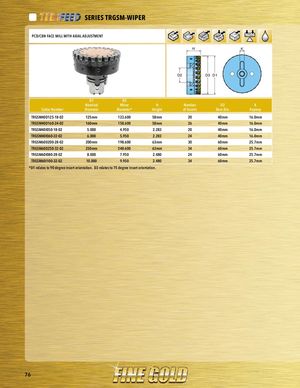

SERIES TRGSM-WIPER
PCD/CBN FACE MILL WITH AXIAL ADJUSTMENT
| H D2 | D3 D1 | K | ||||
| D1 Nominal | D3 Minor | H | Number | D2 | K | |
| Cutter Number | Diameter | Diameter | Height | of Inserts | Bore Dia. | Keyway |
| TRGSM40D125-18-02 | 125mm | 123.600 | 58mm | 20 | 40mm | 16.0mm |
| TRGSM40D160-24-02 | 160mm | 158.600 | 58mm | 26 | 40mm | 16.0mm |
| TRGSM40I050-18-02 | 5.000 | 4.950 | 2.283 | 20 | 40mm | 16.0mm |
| TRGSM40I060-22-02 | 6.000 | 5.950 | 2.283 | 24 | 40mm | 16.0mm |
| TRGSM60D200-28-02 | 200mm | 198.600 | 63mm | 30 | 60mm | 25.7mm |
| TRGSM60D250-32-02 | 250mm | 248.600 | 63mm | 34 | 60mm | 25.7mm |
| TRGSM60I080-28-02 | 8.000 | 7.950 | 2.480 | 24 | 60mm | 25.7mm |
| TRGSM60I100-32-02 | 10.000 | 9.950 | 2.480 | 34 | 60mm | 25.7mm |
*D1 relates to 90 degree insert orientation. D3 relates to 75 degree insert orientation.
