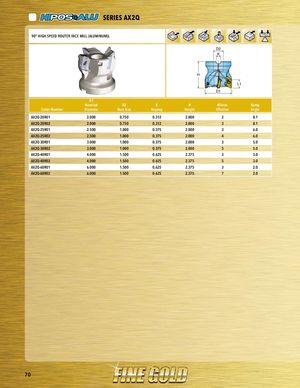

SERIES AX2Q
90° HIGH SPEED ROUTER FACE MILL (ALUMINUM)L D2 K
H L1 D1 D1
| Nominal | D2 | K | H | #Flutes | Ramp | |
| Cutter Number Diameter | Bore Size | Keyway | Height | Effective | Angle | |
| AX2Q-20R01 | 2.000 | 0.750 | 0.312 | 2.000 | 2 | 8.1 |
| AX2Q-20R02 | 2.000 | 0.750 | 0.312 | 2.000 | 3 | 8.1 |
| AX2Q-25R01 | 2.500 | 1.000 | 0.375 | 2.000 | 3 | 6.0 |
| AX2Q-25R02 | 2.500 | 1.000 | 0.375 | 2.000 | 4 | 6.0 |
| AX2Q-30R01 | 3.000 | 1.000 | 0.375 | 2.000 | 3 | 5.0 |
| AX2Q-30R02 | 3.000 | 1.000 | 0.375 | 2.000 | 5 | 5.0 |
| AX2Q-40R01 | 4.000 | 1.500 | 0.625 | 2.375 | 3 | 3.0 |
| AX2Q-40R02 | 4.000 | 1.500 | 0.625 | 2.375 | 5 | 3.0 |
| AX2Q-60R01 | 6.000 | 1.500 | 0.625 | 2.375 | 3 | 2.0 |
| AX2Q-60R02 | 6.000 | 1.500 | 0.625 | 2.375 | 7 | 2.0 |
