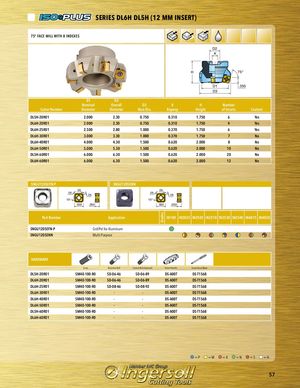

SERIES DL6H DL5H (12 MM INSERT)
75° FACE MILL WITH 8 INDEXES D2 K
H 75° D1 .355 D3 D1 D3
| Nominal | Overall | D2 | K | H | Number | |||
| Cutter Number Diameter | Diameter | Bore Dia. | Keyway | Height | of Inserts | Coolant | ||
| DL5H-20R01 | 2.000 | 2.30 | 0.750 | 0.310 | 1.750 | 6 | Yes | |
| DL6H-20R01 | 2.000 | 2.30 | 0.750 | 0.310 | 1.750 | 4 | Yes | |
| DL6H-25R01 | 2.500 | 2.80 | 1.000 | 0.370 | 1.750 | 6 | Yes | |
| DL6H-30R01 | 3.000 | 3.30 | 1.000 | 0.370 | 1.750 | 7 | No | |
| DL6H-40R01 | 4.000 | 4.30 | 1.500 | 0.620 | 2.000 | 8 | No | |
| DL6H-50R01 | 5.000 | 5.30 | 1.500 | 0.620 | 2.000 | 10 | No | |
| DL5H-60R01 | 6.000 | 6.30 | 1.500 | 0.620 | 2.000 | 20 | No | |
| DL6H-60R01 | 6.000 | 6.30 | 1.500 | 0.620 | 2.000 | 12 | No |
SNGU1205EFN-P SNGU1205ENN .05 .05 .05 .05 .05 .05 15° 15°
.500 .250 .500 .250
Part Number Application ades IN10K IN2035 IN2505 IN2510 IN2530 IN2540 IN4015 IN4030
SNGU1205EFN-P Grd/Pol for Aluminum SNGU1205ENN Multi-Purpose
HARDWARE
| Screw Retention Bolt | Coolant Bolt (Optional) | Driver Handle | Screw Driver Blade | ||||
| DL5H-20R01 | SM40-100-R0 | SD-06-46 | SD-06-89 | DS-A00T | DS-T156B | ||
| DL6H-20R01 | SM40-100-R0 | SD-06-46 | SD-06-89 | DS-A00T | DS-T156B | ||
| DL6H-25R01 | SM40-100-R0 | SD-08-46 | SD-08-92 | DS-A00T | DS-T156B | ||
| DL6H-30R01 | SM40-100-R0 | - | - | DS-A00T | DS-T156B | ||
| DL6H-40R01 | SM40-100-R0 | - | - | DS-A00T | DS-T156B | ||
| DL6H-50R01 | SM40-100-R0 | - | - | DS-A00T | DS-T156B | ||
| DL5H-60R01 | SM40-100-R0 | - | - | DS-A00T | DS-T156B | ||
| DL6H-60R01 | SM40-100-R0 | - | - | DS-A00T | DS-T156B |
