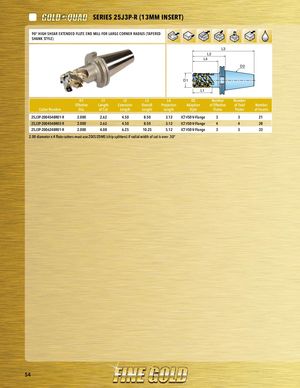

90° HIGH SHEAR EXTENDED FLUTE END MILL FOR LARGE CORNER RADIUS (TAPERED SHANK STYLE) L3 L2 L4 D2 D1 L1
| D1 | L1 | L2 | L3 | L4 | D2 | Number | Number | ||||
| Effective | Length | Extension | Overall | Projection | Adaption | of Effective | of Total | Number | |||
| Cutter Number Dia. | of Cut | Length | Length | Length | Style | Flutes | Flutes | of Inserts | |||
| 25J3P-2004548R01-R | 2.000 | 2.62 | 4.50 | 8.50 | 3.12 | ICT #50 V-Flange | 3 | 3 | 21 | ||
| 25J3P-2004548R02-R | 2.000 | 2.62 | 4.50 | 8.50 | 3.12 | ICT #50 V-Flange | 4 | 4 | 28 | ||
| 25J3P-2006248R01-R | 2.000 | 4.08 | 6.25 | 10.25 | 5.12 | ICT #50 V-Flange | 3 | 3 | 33 |
2.00 diameter x 4 flute cutters must use ZDES/ZDMS (chip splitters) if radial width of cut is over .50“
