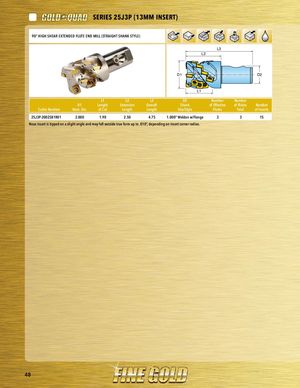

SERIES 25J3P (13MM INSERT)
90° HIGH SHEAR EXTENDED FLUTE END MILL (STRAIGHT SHANK STYLE) L3 L2
D1 D2
L1
| L1 | L2 | L3 | D2 | Number | Number | |||||||||||
| D1 | Length | Extension | Overall | Shank | of Effective | of Flutes | Number | |||||||||
| Cutter Number | Nom. Dia. | of Cut | Length | Length | Size/Style | Flutes | Total | of Inserts | ||||||||
| 25J3P-2002581R01 | 2.000 | 1.90 | 2.50 | 4.75 | 1.000“ Weldon w/Flange | 3 | 3 | 15 |
Nose insert is tipped on a slight angle and may fall outside true form up to .010“, depending on insert corner radius.
