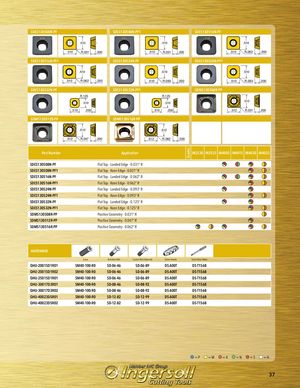

Общий каталог Ingersoll 2016 - 2017 - страница 39

SDES130508N-PF SDES130508N-PF1 SDES130516N-PF
.510 .510 .510
.510 R.031 .200 .510 R.031 .200 .510 R.062 .200

SDES130516N-PF1 SDES130524N-PF SDES130524N-PF1
.510 .510 .510
.510 R.062 .200 .510 R.093 .200 .510 R.093 .200
SDES130532N-PF SDES130532N-PF1 SDMS130508R-PP
R.125 R.125
.512
.510 .510
.510 .200 .510 .200 .512 R.031 .200

SDMS130512R-PP SDMS130516R-PP
.512 .512
.512 R.047 .200 .512 R.062 .200


Grades
Part Number Application IN2530 IN2535 IN4005 IN4015 IN4030 IN4035
SDES130508N-PF Flat Top - Landed Edge - 0.031“ R
SDES130508N-PF1 Flat Top - Keen Edge - 0.031“ R
SDES130516N-PF Flat Top - Landed Edge - 0.062“ R
SDES130516N-PF1 Flat Top - Keen Edge - 0.062“ R
SDES130524N-PF Flat Top - Landed Edge - 0.093“ R
SDES130524N-PF1 Flat Top - Keen Edge - 0.093“ R
SDES130532N-PF Flat Top - Landed Edge - 0.125“ R
SDES130532N-PF1 Flat Top - Keen Edge - 0.125“ R
SDMS130508R-PP Positive Geometry - 0.031“ R
SDMS130512R-PP Positive Geometry - 0.047“ R
SDMS130516R-PP Positive Geometry - 0.062“ R


HARDWARE
Screw Retention Bolt Coolant Bolt (Optional) Driver Handle Screw Driver Blade
QHU-20015D1R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
QHU-20015D1R02 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
QHU-25015D1R01 SM40-100-R0 SD-06-46 SD-06-89 DS-A00T DS-T156B
QHU-30017D3R01 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
QHU-30017D3R02 SM40-100-R0 SD-08-46 SD-08-92 DS-A00T DS-T156B
QHU-40023D5R01 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B
QHU-40023D5R02 SM40-100-R0 SD-12-82 SD-12-99 DS-A00T DS-T156B


=P =M =K =N =S =H
