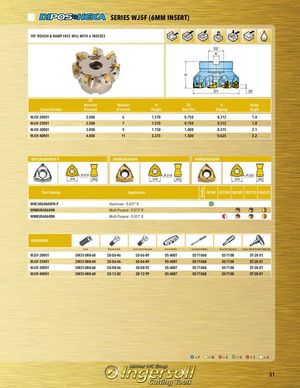

SERIES WJ5F (6MM INSERT)
90° ROUGH & RAMP FACE MILL WITH 6 INDEXES D2 K
H
D1 .23 D1
| Nominal | Number | H | D2 | K | Ramp | |
| Cutter Number Diameter | of Inserts | Height | Bore Dia. | Keyway | Angle | |
| WJ5F-20R01 | 2.000 | 6 | 1.570 | 0.750 | 0.312 | 1.4 |
| WJ5F-25R01 | 2.500 | 7 | 1.570 | 0.750 | 0.312 | 1.8 |
| WJ5F-30R01 | 3.000 | 9 | 1.750 | 1.000 | 0.375 | 2.1 |
| WJ5F-40R01 | 4.000 | 11 | 2.375 | 1.500 | 0.625 | 2.2 |
WNCU060608FN-P WNMU060604N WNMU060608N
R.015 R.015 R.031
.370 .250 .370 .250 .370 .250
Part Number Application ades IN10K IN2504 IN2505 IN2530 IN6535
WNCU060608FN-P Aluminum - 0.031“ R WNMU060604N Multi-Purpose - 0.015“ R WNMU060608N Multi-Purpose - 0.031“ R
HARDWARE
| Screw | Retention Bolt | Coolant Bolt (Optional) | Driver Handle | Screw Driver Blade | Driver Bit (Optional) | Torque Driver Handle (Optional) | |||
| WJ5F-20R01 | SM35-088-60 | SD-06-46 | SD-06-89 | DS-A00T | DS-T106B | DS-T10B | DT-28-01 | ||
| WJ5F-25R01 | SM35-088-60 | SD-06-46 | SD-06-89 | DS-A00T | DS-T106B | DS-T10B | DT-28-01 | ||
| WJ5F-30R01 | SM35-088-60 | SD-08-46 | SD-08-92 | DS-A00T | DS-T106B | DS-T10B | DT-28-01 | ||
| WJ5F-40R01 | SM35-088-60 | SD-12-82 | SD-12-99 | DS-A00T | DS-T106B | DS-T10B | DT-28-01 |
