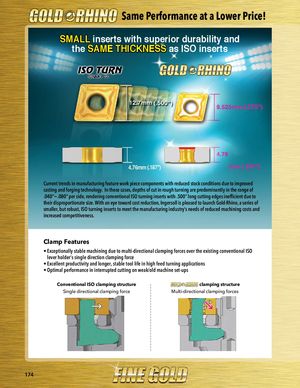

Same Performance at a Lower Price! SMALL inserts with superior durability and the SAME THICKNESS as ISO inserts Current trends in manufacturing feature work piece components with reduced stock conditions due to improved casting and forging technology. In these cases, depths of cut in rough turning are predominantly in the range of .040”~.080” per side, rendering conventional ISO turning inserts with .500” long cutting edges inefficient due to their disproportionate size. With an eye toward cost reduction, Ingersoll is pleased to launch Gold-Rhino, a series of smaller, but robust, ISO turning inserts to meet the manufacturing industry’s needs of reduced machining costs and increased competitiveness. Clamp Features • Exceptionally stable machining due to multi-directional clamping forces over the existing conventional ISO lever holder’s single direction clamping force • Excellent productivity and longer, stable tool life in high feed turning applications • Optimal performance in interrupted cutting on weak/old machine set-ups Conventional ISO clamping structure clamping structure Single directional clamping force Multi-directional clamping forces 174
