Общий каталог Ingersoll 2016 - 2017 - страница 174

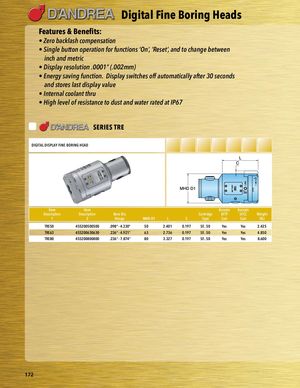

PART SERIES Digital Fine Boring Heads Features & Benefits: PART SERIES • Zero backlash compensation • Single button operation for functions ‘On’, ‘Reset’, and to change between inch and metric • Display resolution .0001” (.002mm) • Energy saving function. Display switches off automatically after 30 seconds and stores last display value • Internal coolant thru • High level of resistance to dust and water rated at IP67 Placeholder SERIES TRE DIGITAL DISPLAY FINE BORING HEAD Item Item Accepts Accepts Description Description Bore Dia Cartridge SFTP SFCC Weight 1 2 Range MHD D1 L C Type Cart Cart (lb) TRE50 455200500500 .098“ - 4.330“ 50 2.401 0.197 SF.. 50 Yes Yes 2.425 TRE63 455200630630 .236“ - 4.921“ 63 2.736 0.197 SF.. 50 Yes Yes 4.850 TRE80 455200800800 .236“ - 7.874“ 80 3.327 0.197 SF.. 50 Yes Yes 8.600 172
