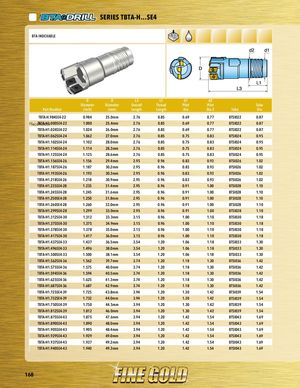

PART SERIES SERIES TBTA-H...SE4 PBATARTINSDEREIXEASBLE D D L3 L1 d1 d2 Diameter Diameter Overall Thread Pilot Pilot Tube Part Number (inch) (mm) Length Length Dia Dia 2 Tube Dia TBTA-H.984SE4-22 0.984 25.0mm 2.76 0.85 0.69 0.77 BTSI022 0.87 PlaceThBoTAld-He1r.000SE4-22 1.000 25.4mm 2.76 0.85 0.69 0.77 BTSI022 0.87 TBTA-H1.024SE4-22 1.024 26.0mm 2.76 0.85 0.69 0.77 BTSI022 0.87 TBTA-H1.062SE4-24 1.062 27.0mm 2.76 0.85 0.75 0.83 BTSI024 0.95 TBTA-H1.102SE4-24 1.102 28.0mm 2.76 0.85 0.75 0.83 BTSI024 0.95 TBTA-H1.114SE4-24 1.114 28.3mm 2.76 0.85 0.75 0.83 BTSI024 0.95 TBTA-H1.125SE4-24 1.125 28.6mm 2.76 0.85 0.75 0.83 BTSI024 0.95 TBTA-H1.156SE4-26 1.156 29.4mm 2.95 0.96 0.83 0.93 BTSI026 1.02 TBTA-H1.187SE4-26 1.187 30.2mm 2.95 0.96 0.83 0.93 BTSI026 1.02 TBTA-H1.193SE4-26 1.193 30.3mm 2.95 0.96 0.83 0.93 BTSI026 1.02 TBTA-H1.218SE4-26 1.218 30.9mm 2.95 0.96 0.83 0.93 BTSI026 1.02 TBTA-H1.235SE4-28 1.235 31.4mm 2.95 0.96 0.91 1.00 BTSI028 1.10 TBTA-H1.245SE4-28 1.245 31.6mm 2.95 0.96 0.91 1.00 BTSI028 1.10 TBTA-H1.250SE4-28 1.250 31.8mm 2.95 0.96 0.91 1.00 BTSI028 1.10 TBTA-H1.260SE4-28 1.260 32.0mm 2.95 0.96 0.91 1.00 BTSI028 1.10 TBTA-H1.299SE4-28 1.299 33.0mm 2.95 0.96 0.91 1.00 BTSI028 1.10 TBTA-H1.312SE4-30 1.312 33.3mm 3.15 0.96 1.00 1.10 BTSI030 1.18 TBTA-H1.375SE4-30 1.375 34.9mm 3.15 0.96 1.00 1.10 BTSI030 1.18 TBTA-H1.378SE4-30 1.378 35.0mm 3.15 0.96 1.00 1.10 BTSI030 1.18 TBTA-H1.417SE4-30 1.417 36.0mm 3.15 0.96 1.00 1.10 BTSI030 1.18 TBTA-H1.437SE4-33 1.437 36.5mm 3.54 1.20 1.06 1.18 BTSI033 1.30 TBTA-H1.496SE4-33 1.496 38.0mm 3.54 1.20 1.06 1.18 BTSI033 1.30 TBTA-H1.500SE4-33 1.500 38.1mm 3.54 1.20 1.06 1.18 BTSI033 1.30 TBTA-H1.562SE4-36 1.562 39.7mm 3.74 1.20 1.18 1.30 BTSI036 1.42 TBTA-H1.575SE4-36 1.575 40.0mm 3.74 1.20 1.18 1.30 BTSI036 1.42 TBTA-H1.594SE4-36 1.594 40.5mm 3.74 1.20 1.18 1.30 BTSI036 1.42 TBTA-H1.625SE4-36 1.625 41.3mm 3.74 1.20 1.18 1.30 BTSI036 1.42 TBTA-H1.687SE4-36 1.687 42.9mm 3.74 1.20 1.18 1.30 BTSI036 1.42 TBTA-H1.725SE4-39 1.725 43.8mm 3.94 1.20 1.30 1.42 BTSI039 1.54 TBTA-H1.732SE4-39 1.732 44.0mm 3.94 1.20 1.30 1.42 BTSI039 1.54 TBTA-H1.750SE4-39 1.750 44.5mm 3.94 1.20 1.30 1.42 BTSI039 1.54 TBTA-H1.812SE4-39 1.812 46.0mm 3.94 1.20 1.30 1.42 BTSI039 1.54 TBTA-H1.875SE4-43 1.875 47.6mm 3.94 1.20 1.42 1.54 BTSI043 1.69 TBTA-H1.890SE4-43 1.890 48.0mm 3.94 1.20 1.42 1.54 BTSI043 1.69 TBTA-H1.905SE4-43 1.905 48.4mm 3.94 1.20 1.42 1.54 BTSI043 1.69 TBTA-H1.929SE4-43 1.929 49.0mm 3.94 1.20 1.42 1.54 BTSI043 1.69 TBTA-H1.937SE4-43 1.937 49.2mm 3.94 1.20 1.42 1.54 BTSI043 1.69 TBTA-H1.940SE4-43 1.940 49.3mm 3.94 1.20 1.42 1.54 BTSI043 1.69 168
