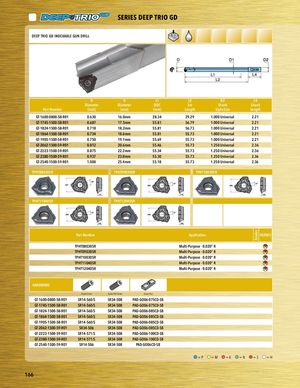

PART SERIES SERIES DEEP TRIO GD PDAEREPT STERRIOIEGSD INDEXABLE GUN DRILL D D L1 L2 D2 L4 Diameter Diameter DOC Ext Shank Shank Part Number (inch) (mm) (mm) Length Style/Size Length GT-1600-0800-58-R01 0.630 16.0mm 28.34 29.29 1.000 Universal 2.21 PlacGeTh-1o7l4d5e-1r 500-58-R01 0.687 17.5mm 55.81 56.79 1.000 Universal 2.21 GT-1824-1500-58-R01 0.718 18.2mm 55.81 56.73 1.000 Universal 2.21 GT-1864-1500-58-R01 0.734 18.6mm 55.81 55.73 1.000 Universal 2.21 GT-1905-1500-58-R01 0.750 19.1mm 55.69 55.73 1.000 Universal 2.21 GT-2062-1500-59-R01 0.812 20.6mm 55.46 55.73 1.250 Universal 2.36 GT-2223-1500-59-R01 0.875 22.2mm 55.34 55.73 1.250 Universal 2.36 GT-2380-1500-59-R01 0.937 23.8mm 55.30 55.73 1.250 Universal 2.36 GT-2540-1500-59-R01 1.000 25.4mm 55.18 55.73 1.250 Universal 2.36 TPHT080305R TPHT090305R TPHT100305R TPHT110405R TPHT120405R asdf Part Number Application IN2005 TPHT080305R Multi-Purpose - 0.020“ R TPHT090305R Multi-Purpose - 0.020“ R TPHT100305R Multi-Purpose - 0.020“ R TPHT110405R Multi-Purpose - 0.020“ R TPHT120405R Multi-Purpose - 0.020“ R HARDWARE Insert Screw Guide Pad Screw Guide Pad GT-1600-0800-58-R01 SR14-560/S SR34-508 PAD-GO06-075CD-SB GT-1745-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-075CD-SB GT-1824-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB GT-1864-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB GT-1905-1500-58-R01 SR14-560/S SR34-508 PAD-GO06-085CD-SB HAGRT-D2W06A2R-E1500-59-R01 SR34-506 SR34-508 PAD-GO06-085CD-SB GT-2223-1500-59-R01 SR14-571/S SR34-508 PAD-GO06-100CD-SB GT-2380-1500-59-R01 ShRa1rdw4a-r5e d7es1c 1/S ShaRrd3wa4re-5de0sc82 PADha-rdGwOare0d6es-c13 00CD-SB hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 GT-2540-1500-59-R01 SR14-506 SR34-508 PAD-GO06CD-SB =P =M =K =N =S =H 166 Grades
