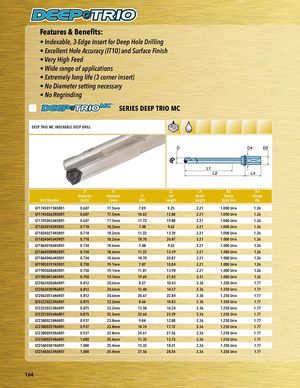

Общий каталог Ingersoll 2016 - 2017 - страница 166

PART SERIES Features & Benefits: PART SERIES • Indexable, 3-Edge Insert for Deep Hole Drilling • Excellent Hole Accuracy (IT10) and Surface Finish • Very High Feed • Wide range of applications • Extremely long life (3 corner insert) • No Diameter setting necessary • No Regrinding SERIES DEEP TRIO MC Placeholder DEEP TRIO MC INDEXABLE DEEP DRILL D D L2 L4 D2 D4 Diameter Diameter L1 Ext Shank Shank Flange Part Number (inch) (mm) DOC Length Length Style/Size Dia GT17450175N5R01 0.687 17.5mm 7.09 9.25 2.21 1.000 Univ 1.26 GT17450262N5R01 0.687 17.5mm 10.63 12.80 2.21 1.000 Univ 1.26 GT17450436N5R01 0.687 17.5mm 17.72 19.88 2.21 1.000 Univ 1.26 GT18240182N5R01 0.718 18.2mm 7.48 9.65 2.21 1.000 Univ 1.26 GT18240274N5R01 0.718 18.2mm 11.22 13.39 2.21 1.000 Univ 1.26 GT18240456N5R01 0.718 18.2mm 18.70 20.87 2.21 1.000 Univ 1.26 GT18640186N5R01 0.734 18.6mm 7.48 9.65 2.21 1.000 Univ 1.26 GT18640280N5R01 0.734 18.6mm 11.22 13.39 2.21 1.000 Univ 1.26 GT18640466N5R01 0.734 18.6mm 18.70 20.87 2.21 1.000 Univ 1.26 GT19050191N5R01 0.750 19.1mm 7.87 10.04 2.21 1.000 Univ 1.26 GT19050286N5R01 0.750 19.1mm 11.81 13.98 2.21 1.000 Univ 1.26 GT19050476N5R01 0.750 19.1mm 19.69 21.85 2.21 1.000 Univ 1.26 GT20620206N6R01 0.812 20.6mm 8.27 10.43 2.36 1.250 Univ 1.77 GT20620309N6R01 0.812 20.6mm 12.40 14.57 2.36 1.250 Univ 1.77 GT20620516N6R01 0.812 20.6mm 20.67 22.84 2.36 1.250 Univ 1.77 GT22230222N6R01 0.875 22.2mm 8.66 10.83 2.36 1.250 Univ 1.77 GT22230333N6R01 0.875 22.2mm 13.58 16.54 2.36 1.250 Univ 1.77 GT22230556N6R01 0.875 22.2mm 22.64 25.59 2.36 1.250 Univ 1.77 GT23800238N6R01 0.937 23.8mm 9.84 12.80 2.36 1.250 Univ 1.77 GT23800357N6R01 0.937 23.8mm 14.76 17.72 2.36 1.250 Univ 1.77 GT23800595N6R01 0.937 23.8mm 24.61 27.56 2.36 1.250 Univ 1.77 GT25400254N6R01 1.000 25.4mm 11.35 13.73 2.36 1.250 Univ 1.77 GT25400381N6R01 1.000 25.4mm 15.35 18.31 2.36 1.250 Univ 1.77 GT25400635N6R01 1.000 25.4mm 27.56 28.54 2.36 1.250 Univ 1.77 164
