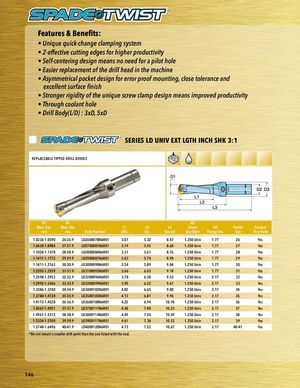

Общий каталог Ingersoll 2016 - 2017 - страница 148
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
Общий каталог Ingersoll 2013 - 2014
PART SERIES
- Unique quick-change clamping system
- 2-effective cutting edges for higher productivity
- Self-centering design means no need for a pilot hole
- Easier replacement of the drill head in the machine
- Asymmetrical pocket design for error proof mounting, close tolerance and
excellent surface finish
- Stronger rigidity of the unique screw clamp design means improved productivity
- Through coolant hole
- Drill Body(L/D) : 3xD, 5xD
Placeholder
SERIES LD UNIV EXT LGTH INCH SHK 3:1
REPLACEABLE TIPPED DRILL BODIES
| D1 | D1 | D2 | |||||||
| Nom. Dia. | Nom. Dia. | L1 | L2 | L3 | Shank | D3 | Coolant | ||
| inch | mm | Body Number | DOC | Ext. | Overall | Size/Style | Flange Dia. | Size | Thru Point |
| 1.0236-1.0590 | 26-26.9 | LD2600078N6R01 | 3.07 | 5.32 | 8.47 | 1.250 Univ | 1.77 | 26 | Yes |
| 1.0630-1.0984 | 27-27.9 | LD2700081N6R01 | 3.19 | 5.45 | 8.60 | 1.250 Univ | 1.77 | 27 | Yes |
| 1.1024-1.1378 | 28-28.9 | LD2800084N6R01 | 3.31 | 5.61 | 8.76 | 1.250 Univ | 1.77 | 28 | Yes |
| 1.1417-1.1772 | 29-29.9 | LD2900087N6R01 | 3.43 | 5.74 | 8.90 | 1.250 Univ | 1.77 | 29 | Yes |
| 1.1811-1.2165 | 30-30.9 | LD3000090N6R01 | 3.54 | 5.89 | 9.04 | 1.250 Univ | 1.77 | 30 | Yes |
| 1.2205-1.2559 | 31-31.9 | LD3100093N6R01 | 3.66 | 6.03 | 9.18 | 1.250 Univ | 1.77 | 31 | Yes |
| 1.2598-1.2953 | 32-32.9 | LD3200096N6R01 | 3.78 | 6.38 | 9.53 | 1.250 Univ | 2.17 | 32 | Yes |
| 1.2992-1.3346 | 33-33.9 | LD3300099N6R01 | 3.90 | 6.52 | 9.67 | 1.250 Univ | 2.17 | 33 | Yes |
| 1.3386-1.3740 | 34-34.9 | LD3400102N6R01 | 4.02 | 6.65 | 9.80 | 1.250 Univ | 2.17 | 34 | Yes |
| 1.3780-1.4134 | 35-35.9 | LD3500105N6R01 | 4.13 | 6.81 | 9.96 | 1.250 Univ | 2.17 | 35 | Yes |
| 1.4173-1.4528 | 36-36.9 | LD3600108N6R01 | 4.25 | 6.94 | 10.10 | 1.250 Univ | 2.17 | 36 | Yes |
| 1.4567-1.4921 | 37-37.9 | LD3700111N6R01 | 4.30 | 7.08 | 10.23 | 1.250 Univ | 2.17 | 37 | Yes |
| 1.4961-1.5315 | 38-38.9 | LD3800114N6R01 | 4.49 | 7.24 | 10.39 | 1.250 Univ | 2.17 | 38 | Yes |
| 1.5354-1.5709 | 39-39.9 | LD3900117N6R01 | 4.61 | 7.38 | 10.53 | 1.250 Univ | 2.17 | 39 | Yes |
| 1.5748-1.6496 | 40-41.9 | LD4000120N6R01 | 4.72 | 7.52 | 10.67 | 1.250 Univ | 2.17 | 40-41 | Yes |
*Do not mount a smaller drill point than the one listed with the tool.
