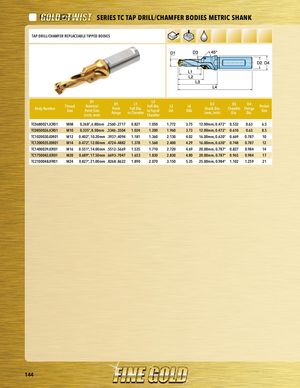

PART SERIES SERIES TC TAP DRILL/CHAMFER BODIES METRIC SHANK

PART SERIESTAP DRILL/CHAMFER REPLACEABLE TIPPED BODIES

Body Number	Thread Size	D1 Nominal Point Size (inch, mm) D1 Point Range	L1 Full Dia. to Chamfer	L2 Full Dia. to Top of Chamfer	L3 Ext.	L4 OAL	D2 Shank Dia. (mm, inch)	D3 Chamfer Dia.	D4 Flange Dia.	Pocket Size
Placeholder TC0680021JCR01	M08	0.268“, 6.80mm .2560-.2717	0.827	1.050	1.772	3.75	12.00mm, 0.472“	0.532	0.63	6.5
TC0850026JCR01	M10	0.335“, 8.50mm .3346-.3504	1.024	1.200	1.960	3.73	12.00mm, 0.472“	0.610	0.63	8.5
TC1020030JDR01	M12	0.402“, 10.20mm .3937-.4094	1.181	1.360	2.130	4.02	16.00mm, 0.630“	0.669	0.787	10
TC1200035JDR01	M14	0.472“, 12.00mm .4724-.4882	1.378	1.560	2.400	4.29	16.00mm, 0.630“	0.748	0.787	12
TC1400039JER01	M16	0.551“, 14.00mm .5512-.5669	1.535	1.710	2.720	4.69	20.00mm, 0.787“	0.827	0.984	14
TC1750042JER01	M20	0.689“, 17.50mm .6693-.7047	1.653	1.830	2.830	4.80	20.00mm, 0.787“	0.965	0.984	17
TC2100048JFR01	M24	0.827“, 21.00mm .8268-.8622	1.890	2.070	3.150	5.35	25.00mm, 0.984“	1.102	1.259	21
