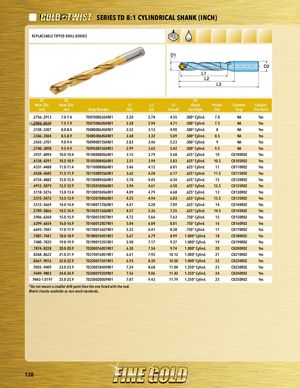

PART SERIESREPLACEABLE TIPPED DRILL BODIES
| D1 Nom. Dia. inch | D1 Nom. Dia. mm | Body Number | L1 DOC | L2 Ext. | L3 Overall | D2 Shank Size/Style | Pocket Size | Chamfer Ring | Coolant Thru Point |
| .2756-.2913 | 7.0-7.4 | TD0700056S4R01 | 2.20 | 2.78 | 4.55 | .500“ Cylind. | 7.0 | NA | Yes |
| Placeholder .2953-.3110 | 7.5-7.9 | TD0750060S4R01 | 2.28 | 2.94 | 4.71 | .500“ Cylind. | 7.5 | NA | Yes |
| .3150-.3307 | 8.0-8.4 | TD0800064S4R01 | 2.52 | 3.13 | 4.90 | .500“ Cylind. | 8 | NA | Yes |
| .3346-.3504 | 8.5-8.9 | TD0850068S4R01 | 2.68 | 3.32 | 5.09 | .500“ Cylind. | 8.5 | NA | Yes |
| .3543-.3701 | 9.0-9.4 | TD0900072S4R01 | 2.83 | 3.46 | 5.23 | .500“ Cylind. | 9 | NA | Yes |
| .3740-.3898 | 9.5-9.9 | TD0950076S4R01 | 2.99 | 3.65 | 5.42 | .500“ Cylind. | 9.5 | NA | Yes |
| .3937-.4094 | 10.0-10.4 | TD1000080S6R01 | 3.15 | 3.79 | 5.68 | .625“ Cylind. | 10 | CB100R02 | Yes |
| .4134-.4291 | 10.5-10.9 | TD1050084S6R01 | 3.31 | 3.94 | 5.83 | .625“ Cylind. | 10.5 | CB105R02 | Yes |
| .4331-.4488 | 11.0-11.4 | TD1100088S6R01 | 3.46 | 4.12 | 6.01 | .625“ Cylind. | 11 | CB110R02 | Yes |
| .4528-.4685 | 11.5-11.9 | TD1150092S6R01 | 3.62 | 4.28 | 6.17 | .625“ Cylind. | 11.5 | CB115R02 | Yes |
| .4724-.4882 | 12.0-12.4 | TD1200096S6R01 | 3.78 | 4.45 | 6.34 | .625“ Cylind. | 12 | CB120R02 | Yes |
| .4912-.5079 | 12.5-12.9 | TD1250100S6R01 | 3.94 | 4.61 | 6.50 | .625“ Cylind. | 12.5 | CB125R02 | Yes |
| .5118-.5276 | 13.0-13.4 | TD1300104S6R01 | 4.09 | 4.79 | 6.68 | .625“ Cylind. | 13 | CB130R02 | Yes |
| .5315-.5472 | 13.5-13.9 | TD1350108S6R01 | 4.25 | 4.94 | 6.83 | .625“ Cylind. | 13.5 | CB135R02 | Yes |
| .5512-.5669 | 14.0-14.4 | TD1400112S6R01 | 4.41 | 5.20 | 7.09 | .625“ Cylind. | 14 | CB140R02 | Yes |
| .5709-.5866 | 14.5-14.9 | TD1450116S6R01 | 4.57 | 5.36 | 7.25 | .625“ Cylind. | 14.5 | CB145R02 | Yes |
| .5906-.6260 | 15.0-15.9 | TD1500120S7R01 | 4.72 | 5.66 | 7.63 | .750“ Cylind. | 15 | CB150R02 | Yes |
| .6299-.6654 | 16.0-16.9 | TD1600128S7R01 | 5.04 | 6.04 | 8.01 | .750“ Cylind. | 16 | CB160R02 | Yes |
| .6693-.7047 | 17.0-17.9 | TD1700136S7R01 | 5.35 | 6.41 | 8.38 | .750“ Cylind. | 17 | CB170R02 | Yes |
| .7087-.7441 | 18.0-18.9 | TD1800144S1R01 | 5.67 | 6.79 | 8.99 | 1.000“ Cylind. | 18 | CB180R02 | Yes |
| .7480-.7835 | 19.0-19.9 | TD1900152S1R01 | 5.98 | 7.17 | 9.37 | 1.000“ Cylind. | 19 | CB190R02 | Yes |
| .7874-.8228 | 20.0-20.9 | TD2000160S1R01 | 6.30 | 7.54 | 9.74 | 1.000“ Cylind. | 20 | CB200R02 | Yes |
| .8268-.8622 | 21.0-21.9 | TD2100168S1R01 | 6.61 | 7.92 | 10.12 | 1.000“ Cylind. | 21 | CB210R02 | Yes |
| .8661-.9016 | 22.0-22.9 | TD2200176S1R01 | 6.93 | 8.30 | 10.50 | 1.000“ Cylind. | 22 | CB220R02 | Yes |
| .9055-.9409 | 23.0-23.9 | TD2300184S9R01 | 7.24 | 8.68 | 11.04 | 1.250“ Cylind. | 23 | CB230R02 | Yes |
| .9449-.9803 | 24.0-24.9 | TD2400192S9R01 | 7.56 | 9.06 | 11.42 | 1.250“ Cylind. | 24 | CB240R02 | Yes |
| .9843-1.0197 | 25.0-25.9 | TD2500200S9R01 | 7.87 | 9.43 | 11.79 | 1.250“ Cylind. | 25 | CB250R02 | Yes |
*Do not mount a smaller drill point than the one listed with the tool. Metric shanks available as non-stock standards.
