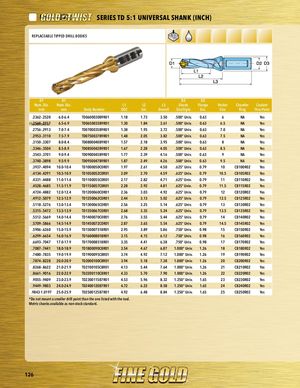

PART SERIESREPLACEABLE TIPPED DRILL BODIES
| D1 Nom. Dia. inch | D1 Nom. Dia. mm | Body Number | L1 DOC | L2 Ext. | L3 Overall | D2 Shank Size/Style | D3 Flange Dia. | Pocket Size | Chamfer Ring | Coolant Thru Point |
| .2362-.2520 | 6.0-6.4 | TD0600030B9R01 | 1.18 | 1.73 | 3.50 | .500“ Univ. | 0.63 | 6 | NA | Yes |
| Placeholder .2560-.2717 | 6.5-6.9 | TD0650033B9R01 | 1.30 | 1.84 | 3.61 | .500“ Univ. | 0.63 | 6.5 | NA | Yes |
| .2756-.2913 | 7.0-7.4 | TD0700035B9R01 | 1.38 | 1.95 | 3.72 | .500“ Univ. | 0.63 | 7.0 | NA | Yes |
| .2953-.3110 | 7.5-7.9 | TD0750037B9R01 | 1.48 | 2.05 | 3.82 | .500“ Univ. | 0.63 | 7.5 | NA | Yes |
| .3150-.3307 | 8.0-8.4 | TD0800040B9R01 | 1.57 | 2.18 | 3.95 | .500“ Univ. | 0.63 | 8 | NA | Yes |
| .3346-.3504 | 8.5-8.9 | TD0850042B9R01 | 1.67 | 2.28 | 4.05 | .500“ Univ. | 0.63 | 8.5 | NA | Yes |
| .3543-.3701 | 9.0-9.4 | TD0900045B9R01 | 1.77 | 2.39 | 4.16 | .500“ Univ. | 0.63 | 9 | NA | Yes |
| .3740-.3898 | 9.5-9.9 | TD0950047B9R01 | 1.87 | 2.49 | 4.26 | .500“ Univ. | 0.63 | 9.5 | NA | Yes |
| .3937-.4094 | 10.0-10.4 | TD1000050C0R01 | 1.97 | 2.61 | 4.50 | .625“ Univ. | 0.79 | 10 | CB100R02 | Yes |
| .4134-.4291 | 10.5-10.9 | TD1050052C0R01 | 2.09 | 2.70 | 4.59 | .625“ Univ. | 0.79 | 10.5 | CB105R02 | Yes |
| .4331-.4488 | 11.0-11.4 | TD1100055C0R01 | 2.17 | 2.82 | 4.71 | .625“ Univ. | 0.79 | 11 | CB110R02 | Yes |
| .4528-.4685 | 11.5-11.9 | TD1150057C0R01 | 2.28 | 2.92 | 4.81 | .625“ Univ. | 0.79 | 11.5 | CB115R02 | Yes |
| .4724-.4882 | 12.0-12.4 | TD1200060C0R01 | 2.36 | 3.03 | 4.92 | .625“ Univ. | 0.79 | 12 | CB120R02 | Yes |
| .4912-.5079 | 12.5-12.9 | TD1250062C0R01 | 2.44 | 3.13 | 5.02 | .625“ Univ. | 0.79 | 12.5 | CB125R02 | Yes |
| .5118-.5276 | 13.0-13.4 | TD1300065C0R01 | 2.56 | 3.25 | 5.14 | .625“ Univ. | 0.79 | 13 | CB130R02 | Yes |
| .5315-.5472 | 13.5-13.9 | TD1350067C0R01 | 2.68 | 3.35 | 5.24 | .625“ Univ. | 0.79 | 13.5 | CB135R02 | Yes |
| .5512-.5669 | 14.0-14.4 | TD1400070C0R01 | 2.76 | 3.55 | 5.44 | .625“ Univ. | 0.79 | 14 | CB140R02 | Yes |
| .5709-.5866 | 14.5-14.9 | TD1450072C0R01 | 2.87 | 3.65 | 5.54 | .625“ Univ. | 0.79 | 14.5 | CB145R02 | Yes |
| .5906-.6260 | 15.0-15.9 | TD150007518R01 | 2.95 | 3.89 | 5.86 | .750“ Univ. | 0.98 | 15 | CB150R02 | Yes |
| .6299-.6654 | 16.0-16.9 | TD160008018R01 | 3.15 | 4.15 | 6.12 | .750“ Univ. | 0.98 | 16 | CB160R02 | Yes |
| .6693-.7047 | 17.0-17.9 | TD170008518R01 | 3.35 | 4.41 | 6.38 | .750“ Univ. | 0.98 | 17 | CB170R02 | Yes |
| .7087-.7441 | 18.0-18.9 | TD1800090C8R01 | 3.54 | 4.67 | 6.87 | 1.000“ Univ. | 1.26 | 18 | CB180R02 | Yes |
| .7480-.7835 | 19.0-19.9 | TD1900095C8R01 | 3.74 | 4.92 | 7.12 | 1.000“ Univ. | 1.26 | 19 | CB190R02 | Yes |
| .7874-.8228 | 20.0-20.9 | TD2000100C8R01 | 3.94 | 5.18 | 7.38 | 1.000“ Univ. | 1.26 | 20 | CB200R02 | Yes |
| .8268-.8622 | 21.0-21.9 | TD2100105C8R01 | 4.13 | 5.44 | 7.64 | 1.000“ Univ. | 1.26 | 21 | CB210R02 | Yes |
| .8661-.9016 | 22.0-22.9 | TD2200110C8R01 | 4.33 | 5.70 | 7.90 | 1.000“ Univ. | 1.26 | 22 | CB220R02 | Yes |
| .9055-.9409 | 23.0-23.9 | TD2300115B7R01 | 4.53 | 5.96 | 8.32 | 1.250“ Univ. | 1.65 | 23 | CB230R02 | Yes |
| .9449-.9803 | 24.0-24.9 | TD2400120B7R01 | 4.72 | 6.22 | 8.58 | 1.250“ Univ. | 1.65 | 24 | CB240R02 | Yes |
| .9843-1.0197 | 25.0-25.9 | TD2500125B7R01 | 4.92 | 6.48 | 8.84 | 1.250“ Univ. | 1.65 | 25 | CB250R02 | Yes |
*Do not mount a smaller drill point than the one listed with the tool. Metric shanks available as non-stock standard.
