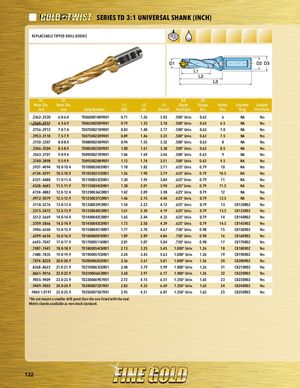

PART SERIESREPLACEABLE TIPPED DRILL BODIES
| D1 Nom. Dia. inch | D1 Nom. Dia. mm | Body Number | L1 DOC | L2 Ext. | L3 Overall | D2 Shank Size/Style | D3 Flange Dia. | Pocket Size | Chamfer Ring | Coolant Thru Point |
| .2362-.2520 | 6.0-6.4 | TD0600018B9R01 | 0.71 | 1.26 | 3.03 | .500“ Univ. | 0.63 | 6 | NA | Yes |
| Placeholder .2560-.2717 | 6.5-6.9 | TD0650020B9R01 | 0.79 | 1.33 | 3.10 | .500“ Univ. | 0.63 | 6.5 | NA | Yes |
| .2756-.2913 | 7.0-7.4 | TD0700021B9R01 | 0.83 | 1.40 | 3.17 | .500“ Univ. | 0.63 | 7.0 | NA | Yes |
| .2953-.3110 | 7.5-7.9 | TD0750022B9R01 | 0.89 | 1.46 | 3.23 | .500“ Univ. | 0.63 | 7.5 | NA | Yes |
| .3150-.3307 | 8.0-8.4 | TD0800024B9R01 | 0.94 | 1.55 | 3.32 | .500“ Univ. | 0.63 | 8 | NA | Yes |
| .3346-.3504 | 8.5-8.9 | TD0850025B9R01 | 1.00 | 1.61 | 3.38 | .500“ Univ. | 0.63 | 8.5 | NA | Yes |
| .3543-.3701 | 9.0-9.4 | TD0900027B9R01 | 1.06 | 1.69 | 3.46 | .500“ Univ. | 0.63 | 9 | NA | Yes |
| .3740-.3898 | 9.5-9.9 | TD0950028B9R01 | 1.12 | 1.74 | 3.51 | .500“ Univ. | 0.63 | 9.5 | NA | Yes |
| .3937-.4094 | 10.0-10.4 | TD1000030C0R01 | 1.18 | 1.82 | 3.71 | .625“ Univ. | 0.79 | 10 | NA | Yes |
| .4134-.4291 | 10.5-10.9 | TD1050031C0R01 | 1.26 | 1.90 | 3.79 | .625“ Univ. | 0.79 | 10.5 | NA | Yes |
| .4331-.4488 | 11.0-11.4 | TD1100033C0R01 | 1.30 | 1.95 | 3.84 | .625“ Univ. | 0.79 | 11 | NA | Yes |
| .4528-.4685 | 11.5-11.9 | TD1150034C0R01 | 1.38 | 2.01 | 3.90 | .625“ Univ. | 0.79 | 11.5 | NA | Yes |
| .4724-.4882 | 12.0-12.4 | TD1200036C0R01 | 1.42 | 2.09 | 3.98 | .625“ Univ. | 0.79 | 12 | NA | Yes |
| .4912-.5079 | 12.5-12.9 | TD1250037C0R01 | 1.46 | 2.15 | 4.04 | .625“ Univ. | 0.79 | 12.5 | NA | Yes |
| .5118-.5276 | 13.0-13.4 | TD1300039C0R01 | 1.54 | 2.23 | 4.12 | .625“ Univ. | 0.79 | 13 | CB130R02 | Yes |
| .5315-.5472 | 13.5-13.9 | TD1350040C0R01 | 1.61 | 2.30 | 4.19 | .625“ Univ. | 0.79 | 13.5 | CB135R02 | Yes |
| .5512-.5669 | 14.0-14.4 | TD1400042C0R01 | 1.65 | 2.44 | 4.33 | .625“ Univ. | 0.79 | 14 | CB140R02 | Yes |
| .5709-.5866 | 14.5-14.9 | TD1450043C0R01 | 1.73 | 2.50 | 4.39 | .625“ Univ. | 0.79 | 14.5 | CB145R02 | Yes |
| .5906-.6260 | 15.0-15.9 | TD150004518R01 | 1.77 | 2.70 | 4.67 | .750“ Univ. | 0.98 | 15 | CB150R02 | Yes |
| .6299-.6654 | 16.0-16.9 | TD160004818R01 | 1.89 | 2.89 | 4.86 | .750“ Univ. | 0.98 | 16 | CB160R02 | Yes |
| .6693-.7047 | 17.0-17.9 | TD170005118R01 | 2.01 | 3.07 | 5.04 | .750“ Univ. | 0.98 | 17 | CB170R02 | Yes |
| .7087-.7441 | 18.0-18.9 | TD1800054C8R01 | 2.13 | 3.25 | 5.45 | 1.000“ Univ. | 1.26 | 18 | CB180R02 | Yes |
| .7480-.7835 | 19.0-19.9 | TD1900057C8R01 | 2.24 | 3.43 | 5.63 | 1.000“ Univ. | 1.26 | 19 | CB190R02 | Yes |
| .7874-.8228 | 20.0-20.9 | TD2000060C8R01 | 2.36 | 3.61 | 5.81 | 1.000“ Univ. | 1.26 | 20 | CB200R02 | Yes |
| .8268-.8622 | 21.0-21.9 | TD2100063C8R01 | 2.48 | 3.79 | 5.99 | 1.000“ Univ. | 1.26 | 21 | CB210R02 | Yes |
| .8661-.9016 | 22.0-22.9 | TD2200066C8R01 | 2.60 | 3.97 | 6.17 | 1.000“ Univ. | 1.26 | 22 | CB220R02 | Yes |
| .9055-.9409 | 23.0-23.9 | TD2300069B7R01 | 2.72 | 4.15 | 6.51 | 1.250“ Univ. | 1.65 | 23 | CB230R02 | Yes |
| .9449-.9803 | 24.0-24.9 | TD2400072B7R01 | 2.83 | 4.33 | 6.69 | 1.250“ Univ. | 1.65 | 24 | CB240R02 | Yes |
| .9843-1.0197 | 25.0-25.9 | TD2500075B7R01 | 2.95 | 4.51 | 6.87 | 1.250“ Univ. | 1.65 | 25 | CB250R02 | Yes |
*Do not mount a smaller drill point than the one listed with the tool. Metric shanks available as non-stock standard.
