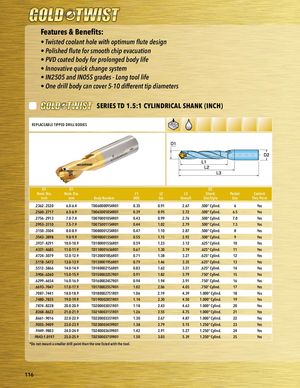

Общий каталог Ingersoll 2016 - 2017 - страница 118
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
Общий каталог Ingersoll 2013 - 2014
PART SERIES
- Twisted coolant hole with optimum flute design
- Polished flute for smooth chip evacuation
- PVD coated body for prolonged body life
- Innovative quick change system
- IN2505 and IN05S grades - Long tool life
- One drill body can cover 5-10 different tip diameters
SERIES TD 1.5:1 CYLINDRICAL SHANK (INCH)
PlaceholderREPLACEABLE TIPPED DRILL BODIES
| D1 Nom. Dia. inch | D1 Nom. Dia. mm | Body Number | L1 DOC | L2 Ext. | L3 Overall | D2 Shank Size/Style | Pocket Size | Coolant Thru Point |
| .2362-.2520 | 6.0-6.4 | TD0600009S4R01 | 0.35 | 0.91 | 2.67 | .500“ Cylind. | 6 | Yes |
| .2560-.2717 | 6.5-6.9 | TD0650010S4R01 | 0.39 | 0.95 | 2.72 | .500“ Cylind. | 6.5 | Yes |
| .2756-.2913 | 7.0-7.4 | TD0700010S4R01 | 0.43 | 0.99 | 2.76 | .500“ Cylind. | 7.0 | Yes |
| .2953-.3110 | 7.5-7.9 | TD0750011S4R01 | 0.44 | 1.02 | 2.79 | .500“ Cylind. | 7.5 | Yes |
| .3150-.3504 | 8.0-8.9 | TD0800012S4R01 | 0.47 | 1.10 | 2.87 | .500“ Cylind. | 8 | Yes |
| .3543-.3898 | 9.0-9.9 | TD0900013S4R01 | 0.55 | 1.15 | 2.92 | .500“ Cylind. | 9 | Yes |
| .3937-.4291 | 10.0-10.9 | TD1000015S6R01 | 0.59 | 1.23 | 3.12 | .625“ Cylind. | 10 | Yes |
| .4331-.4685 | 11.0-11.9 | TD1100016S6R01 | 0.67 | 1.30 | 3.19 | .625“ Cylind. | 11 | Yes |
| .4724-.5079 | 12.0-12.9 | TD1200018S6R01 | 0.71 | 1.38 | 3.27 | .625“ Cylind. | 12 | Yes |
| .5118-.5472 | 13.0-13.9 | TD1300019S6R01 | 0.79 | 1.46 | 3.35 | .625“ Cylind. | 13 | Yes |
| .5512-.5866 | 14.0-14.9 | TD1400021S6R01 | 0.83 | 1.62 | 3.51 | .625“ Cylind. | 14 | Yes |
| .5906-.6260 | 15.0-15.9 | TD1500022S7R01 | 0.91 | 1.82 | 3.79 | .750“ Cylind. | 15 | Yes |
| .6299-.6654 | 16.0-16.9 | TD1600024S7R01 | 0.94 | 1.94 | 3.91 | .750“ Cylind. | 16 | Yes |
| .6693-.7047 | 17.0-17.9 | TD1700025S7R01 | 1.02 | 2.06 | 4.03 | .750“ Cylind. | 17 | Yes |
| .7087-.7441 | 18.0-18.9 | TD1800027S1R01 | 1.06 | 2.19 | 4.39 | 1.000“ Cylind. | 18 | Yes |
| .7480-.7835 | 19.0-19.9 | TD1900028S1R01 | 1.14 | 2.30 | 4.50 | 1.000“ Cylind. | 19 | Yes |
| .7874-.8228 | 20.0-20.9 | TD2000030S1R01 | 1.18 | 2.43 | 4.63 | 1.000“ Cylind. | 20 | Yes |
| .8268-.8622 | 21.0-21.9 | TD2100031S1R01 | 1.26 | 2.55 | 4.75 | 1.000“ Cylind. | 21 | Yes |
| .8661-.9016 | 22.0-22.9 | TD2200033S1R01 | 1.30 | 2.67 | 4.87 | 1.000“ Cylind. | 22 | Yes |
| .9055-.9409 | 23.0-23.9 | TD2300034S9R01 | 1.38 | 2.79 | 5.15 | 1.250“ Cylind. | 23 | Yes |
| .9449-.9803 | 24.0-24.9 | TD2400036S9R01 | 1.42 | 2.91 | 5.27 | 1.250“ Cylind. | 24 | Yes |
| .9843-1.0197 | 25.0-25.9 | TD2500037S9R01 | 1.50 | 3.03 | 5.39 | 1.250“ Cylind. | 25 | Yes |
*Do not mount a smaller drill point than the one listed with the tool.
