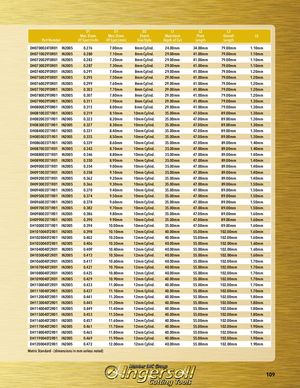

| Part Number | D1 Max. Diam. Of Spot (inch) | D1 Max. Diam. Of Spot (mm) | D2 Shank Size/Style | L1 Maximum Depth of Cut | L2 Flute Length | L3 Overall Length | L5 |
| DH0700024T0R01 IN2005 | 0.276 | 7.00mm | 8mm Cylind. | 24.00mm | 34.00mm | 79.00mm | 1.10mm |
| DH0710029T0R01 IN2005 | 0.280 | 7.10mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.10mm |
| DH0720029T0R01 IN2005 | 0.283 | 7.20mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.10mm |
| DH0730029T0R01 IN2005 | 0.287 | 7.30mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.10mm |
| DH0740029T0R01 IN2005 | 0.291 | 7.40mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.20mm |
| DH0750029T0R01 IN2005 | 0.295 | 7.50mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.20mm |
| DH0760029T0R01 IN2005 | 0.299 | 7.60mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.20mm |
| DH0770029T0R01 IN2005 | 0.303 | 7.70mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.20mm |
| DH0780029T0R01 IN2005 | 0.307 | 7.80mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.20mm |
| DH0790029T0R01 IN2005 | 0.311 | 7.90mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.30mm |
| DH0800029T0R01 IN2005 | 0.315 | 8.00mm | 8mm Cylind. | 29.00mm | 41.00mm | 79.00mm | 1.30mm |
| DH0810035T1R01 IN2005 | 0.319 | 8.10mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.30mm |
| DH0820035T1R01 IN2005 | 0.323 | 8.20mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.30mm |
| DH0830035T1R01 IN2005 | 0.327 | 8.30mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.30mm |
| DH0840035T1R01 IN2005 | 0.331 | 8.40mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.30mm |
| DH0850035T1R01 IN2005 | 0.335 | 8.50mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.30mm |
| DH0860035T1R01 IN2005 | 0.339 | 8.60mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.40mm |
| DH0870035T1R01 IN2005 | 0.343 | 8.70mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.40mm |
| DH0880035T1R01 IN2005 | 0.346 | 8.80mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.40mm |
| DH0890035T1R01 IN2005 | 0.350 | 8.90mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.40mm |
| DH0900035T1R01 IN2005 | 0.354 | 9.00mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.40mm |
| DH0910035T1R01 IN2005 | 0.358 | 9.10mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.40mm |
| DH0920035T1R01 IN2005 | 0.362 | 9.20mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.40mm |
| DH0930035T1R01 IN2005 | 0.366 | 9.30mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.50mm |
| DH0940035T1R01 IN2005 | 0.370 | 9.40mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.50mm |
| DH0950035T1R01 IN2005 | 0.374 | 9.50mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.50mm |
| DH0960035T1R01 IN2005 | 0.378 | 9.60mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.50mm |
| DH0970035T1R01 IN2005 | 0.382 | 9.70mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.50mm |
| DH0980035T1R01 IN2005 | 0.386 | 9.80mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.60mm |
| DH0990035T1R01 IN2005 | 0.390 | 9.90mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.60mm |
| DH1000035T1R01 IN2005 | 0.394 | 10.00mm | 10mm Cylind. | 35.00mm | 47.00mm | 89.00mm | 1.60mm |
| DH1010040T2R01 IN2005 | 0.398 | 10.10mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.60mm |
| DH1020040T2R01 IN2005 | 0.402 | 10.20mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.60mm |
| DH1030040T2R01 IN2005 | 0.406 | 10.30mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.60mm |
| DH1040040T2R01 IN2005 | 0.409 | 10.40mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.60mm |
| DH1050040T2R01 IN2005 | 0.413 | 10.50mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.60mm |
| DH1060040T2R01 IN2005 | 0.417 | 10.60mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.70mm |
| DH1070040T2R01 IN2005 | 0.421 | 10.70mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.70mm |
| DH1080040T2R01 IN2005 | 0.425 | 10.80mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.70mm |
| DH1090040T2R01 IN2005 | 0.429 | 10.90mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.70mm |
| DH1100040T2R01 IN2005 | 0.433 | 11.00mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.70mm |
| DH1110040T2R01 IN2005 | 0.437 | 11.10mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.70mm |
| DH1120040T2R01 IN2005 | 0.441 | 11.20mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.80mm |
| DH1130040T2R01 IN2005 | 0.445 | 11.30mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.80mm |
| DH1140040T2R01 IN2005 | 0.449 | 11.40mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.80mm |
| DH1150040T2R01 IN2005 | 0.453 | 11.50mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.80mm |
| DH1160040T2R01 IN2005 | 0.457 | 11.60mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.80mm |
| DH1170040T2R01 IN2005 | 0.461 | 11.70mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.90mm |
| DH1180040T2R01 IN2005 | 0.465 | 11.80mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.90mm |
| DH1190040T2R01 IN2005 | 0.469 | 11.90mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.90mm |
| DH1200040T2R01 IN2005 | 0.472 | 12.00mm | 12mm Cylind. | 40.00mm | 55.00mm | 102.00mm | 1.90mm |
Metric Standard - (dimensions in mm unless noted)
