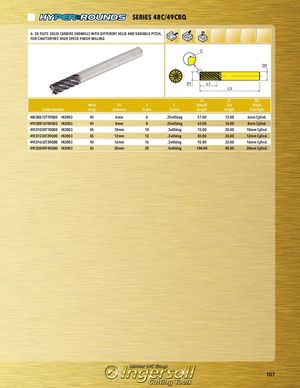

Общий каталог Ingersoll 2016 - 2017 - страница 109
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
Общий каталог Ingersoll 2013 - 2014
SERIES 48C/49CRQ
6- 20 FLUTE SOLID CARBIDE ENDMILLS WITH DIFFERENT HELIX AND VARIABLE PITCH, FOR CHATTERFREE HIGH SPEED FINISH MILLING C D2
D1 L1 L3
| L3 | L1 | D2 | |||||||
| Helix | D1 | Z | C | Overall | Cut | Shank | |||
| Cutter Number (deg) | Diameter | Flutes | Corner | Length | Length | Size/Style | |||
| 48C00612T7RQ00 IN2003 | 45 | 6mm | 6 | .25x45deg | 57.00 | 12.00 | 6mm Cylind. | ||
| 49C00816T0RQ00 IN2003 | 45 | 8mm | 8 | .25x45deg | 63.00 | 16.00 | 8mm Cylind. | ||
| 49C01020T1RQ00 IN2003 | 45 | 10mm | 10 | .3x45deg | 72.00 | 20.00 | 10mm Cylind. | ||
| 49C01224T2RQ00 IN2003 | 45 | 12mm | 12 | .3x45deg | 83.00 | 24.00 | 12mm Cylind. | ||
| 49C01632T3RQ00 IN2003 | 45 | 16mm | 16 | .3x45deg | 92.00 | 32.00 | 16mm Cylind. | ||
| 49C02040T4RQ00 IN2003 | 45 | 20mm | 20 | .4x45deg | 104.00 | 40.00 | 20mm Cylind. |
