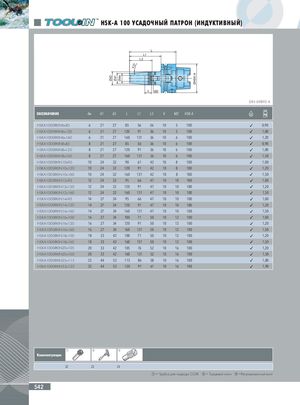

HSK-A 100 УСАДОЧНЫЙ ПАТРОН (ИНДУКТИВНЫЙ) L L1 L3 ° 4 ,5 ØHSK-A Ødw Ød1 Ød3 V M2 DIN 69893 A ОБОЗНАЧЕНИЕ dw d1 d3 L L1 L3 V M2 HSK-A IK HSKA100SRKIN6x85 6 21 27 85 56 36 10 5 100 ✓ 0,90 HSKA100SRKIN6x120 6 21 27 120 91 36 10 5 100 ✓ 1,00 HSKA100SRKIN6x160 6 21 27 160 131 36 10 6 100 ✓ 1,20 HSKA100SRKIN8x85 8 21 27 85 56 36 10 6 100 ✓ 0,90 HSKA100SRKIN8x120 8 21 27 120 91 36 10 6 100 ✓ 1,00 HSKA100SRKIN8x160 8 21 27 160 131 36 10 6 100 ✓ 1,50 HSKA100SRKIN10x90 10 24 32 90 61 42 10 8 100 ✓ 1,00 HSKA100SRKIN10x120 10 24 32 120 91 42 10 8 100 ✓ 1,20 HSKA100SRKIN10x160 10 24 32 160 131 42 10 8 100 ✓ 1,50 HSKA100SRKIN12x95 12 24 32 95 66 47 10 10 100 ✓ 1,00 HSKA100SRKIN12x120 12 24 32 120 91 47 10 10 100 ✓ 1,20 HSKA100SRKIN12x160 12 24 32 160 131 47 10 10 100 ✓ 1,50 HSKA100SRKIN14x95 14 27 34 95 66 47 10 10 100 ✓ 1,00 HSKA100SRKIN14x120 14 27 34 120 91 47 10 10 100 ✓ 1,20 HSKA100SRKIN14x160 14 27 34 160 131 47 10 10 100 ✓ 1,50 HSKA100SRKIN16x100 16 27 34 100 71 50 10 12 100 ✓ 1,00 HSKA100SRKIN16x120 16 27 34 120 91 50 10 12 100 ✓ 1,20 HSKA100SRKIN16x160 16 27 34 160 131 50 10 12 100 ✓ 1,50 HSKA100SRKIN18x100 18 33 42 100 71 50 10 12 100 ✓ 1,20 HSKA100SRKIN18x160 18 33 42 160 131 50 10 12 100 ✓ 1,50 HSKA100SRKIN20x105 20 33 42 105 76 52 10 16 100 ✓ 1,20 HSKA100SRKIN20x160 20 33 42 160 131 52 10 16 100 ✓ 1,50 HSKA100SRKIN25x115 25 44 53 115 86 58 10 16 100 ✓ 1,80 HSKA100SRKIN32x120 32 44 53 120 91 61 10 16 100 ✓ 1,90    Комплектующие Z2 Z2 Z4  = Трубка для подвода СОЖ  = Торцевой ключ  =Регулировочный винт 542
