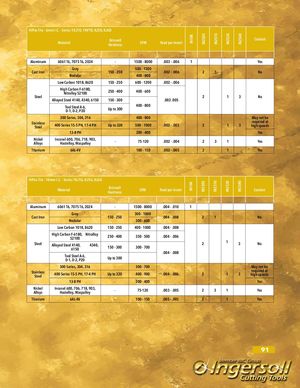

Общий каталог Ingersoll 2013 - 2014 - страница 91

HiPos Trio - 6mm I.C. - Series 1KJ1D, 1KV1D, KJ5D, KJ6D IN2505 IN2510 IN2530 IN2540 IN10K Brinnell Coolant Material SFM Feed per Insert Hardness Aluminum 6061 T6, 7075 T6, 2024 - 1500 - 8000 .003 - .006 1 Yes Gray 500 - 1200 Cast Iron 150 - 250 .002 - .006 2 1 No Nodular 400 - 800 Low Carbon 1018, 8620 150 - 250 600 - 1200 .002 - .006 High Carbon F-6180, 250 - 400 400 - 600 Nitralloy 52100 Steel 2 1 3 No Alloyed Steel 4140, 4340, 6150 150 - 300 .002 .005 Tool Steel A-6, 400 - 800 Up to 300 D-1, D-2, P20 300 Series, 304, 316 - 400 - 800 May not be Stainless required at 400 Series 15-5 PH, 17-4 PH Up to 320 500 - 1000 .002 - .005 2 1 3 high speeds Steel 13-8 PH - 200 - 400 Yes Nickel Inconel 600, 706, 718, 903, - 75-120 .002 - .004 2 3 1 Yes Alloys Hastelloy, Waspalloy Titanium 6AL-4V - 100 - 150 .002 - .005 2 1 Yes HiPos Trio - 10mm I.C. - Series 1KJ1G, KJ5G, KJ6G IN2505 IN2510 IN2530 IN2540 IN10K Brinnell Material SFM Feed per Insert Coolant Hardness Aluminum 6061 T6, 7075 T6, 2024 - 1500 - 8000 .004 - .010 1 Gray 300 - 1000 Cast Iron 150 - 250 .004 - .008 2 1 No Nodular 300 - 600 Low Carbon 1018, 8620 150 - 250 400 - 1000 .004 - .008 High Carbon F-6180, Nitralloy 250 - 400 350 - 500 .004 - .006 52100 1 Steel Alloyed Steel 4140, 4340, 2 3 No 150 - 300 300 - 700 6150 .004 - .008 Tool Steel A-6, Up to 300 D-1, D-2, P20 300 Series, 304, 316 - 300 - 700 May not be Stainless required at 400 Series 15-5 PH, 17-4 PH Up to 320 400 - 900 .004 - .006 2 1 3 high speeds Steel 13-8 PH - 200 - 400 Yes Nickel Inconel 600, 706, 718, 903, - 75-120 .003 - .005 2 3 1 Yes Alloys Hastelloy, Waspalloy Titanium 6AL-4V - 100 - 150 .005 - .005 2 1 Yes 91
