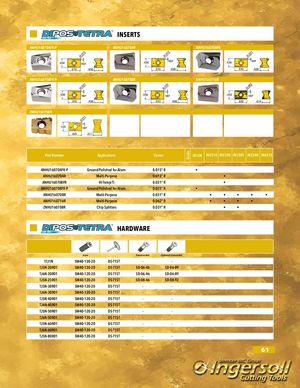

INSERTS ANHU160704FR-P ANHU160704R ANHU160708FR 5 1 5 01 03 01 R. R. R. wpr wpr .436 wpr .436 .436 .610 .436 .610 .436 .610 .436 ANHU160708FR-P ANHU160708R ANHU160716R 2 1 1 06 03 03 R. R. R. .436 wpr .436 wpr .433 wpr .610 .436 .610 .436 .630 .414 ZNHU160708R 1 03 R. .433 wpr .629 .417 Grade Part Number Applications Corner IN10K IN2510 IN2530 IN2505 IN2540 IN6515 ANHU160704FR-P Ground/Polished for Alum. 0.015” R • ANHU160704R Multi-Purpose 0.015” R • ANHU160708FR Hi-Temp/Ti 0.031” R • ANHU160708FR-P Ground/Polished for Alum. 0.031” R • ANHU160708R Multi-Purpose 0.031” R • • • • • ANHU160716R Multi-Purpose 0.062” R • • • • ZNHU160708R Chip Splitters 0.031” R • • HARDWARE Screw Retention Bolt (Optional) Coolant Bolt 1TJ1N SM40-120-20 DS-T15T - - TJ5N-20R01 SM40-120-20 DS-T15T SD-06-46 SD-06-89 TJ6N-20R01 SM40-120-20 DS-T15T SD-06-46 SD-06-89 TJ5N-25R01 SM40-120-20 DS-T15T SD-08-46 SD-08-92 TJ5N-30R01 SM40-120-20 DS-T15T - - TJ6N-30R01 SM40-120-20 DS-T15T - - TJ5N-40R01 SM40-120-20 DS-T15T - - TJ6N-40R01 SM40-120-20 DS-T15T - - TJ5N-50R01 SM40-120-20 DS-T15T - - TJ6N-50R01 SM40-120-20 DS-T15T - - TJ5N-60R01 SM40-120-20 DS-T15T - - TJ6N-60R01 SM40-120-20 DS-T15T - - TJ5N-80R01 SM40-120-20 DS-T15T - - 61
