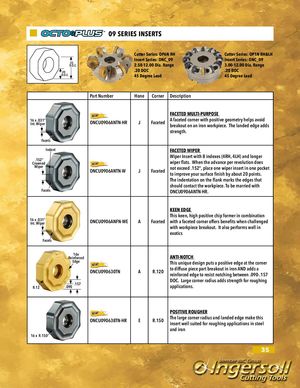

09 SERIES INSERTS Cutter Series: OP6N RH Cutter Series: OP1N RH&LH Insert Series: ONC_09 Insert Series: ONC_09 .55 D.O.C. 2.50-12.00 Dia. Range 3.00-12.00 Dia. Range .20 .20 DOC .20 DOC D.O.C. 45 Degree Lead 45 Degree Lead Part Number Hone Corner Description FACETED MULTI-PURPOSE 16 x .031” A faceted corner with positive geometry helps avoid Int. Wiper ONCU0906ANTN-HR J Faceted breakout on an iron workpiece. The landed edge adds strength. Facets Indent FACETED WIPER Wiper Insert with 8 indexes (4RH, 4LH) and longer .152” Crowned wiper flats. When the advance per revolution does Wiper not exceed .152", place one wiper insert in one pocket ONCU0906ANTN-W J Faceted to improve your surface finish by about 20 points. The indentation on the flank marks the edges that should contact the workpiece. To be married with Facets ONCU0906ANTN-HR. KEEN EDGE This keen, high positive chip former in combination 16 x .031” Int. Wiper ONCU0906ANFN-WE A Faceted with a faceted corner offers benefits when challenged with workpiece breakout. It also performs well in exotics Facets 16x Reinforced ANTI-NOTCH Edge This unique design puts a positive edge at the corner to diffuse piece part breakout in iron AND adds a ONCU090630TN A R.120 reinforced edge to resist notching between .090-.157 DOC. Large corner radius adds strength for roughing .157 R.12 .090 applications. POSITIVE ROUGHER The large corner radius and landed edge make this ONCU090638TN-HR E R.150 insert well suited for roughing applications in steel and iron 16 x R.150 35
