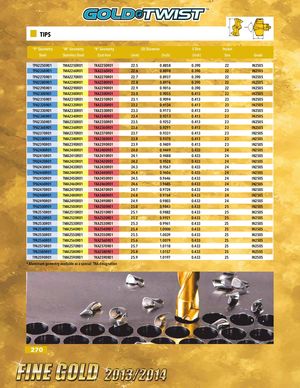

Общий каталог Ingersoll 2013 - 2014 - страница 270
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2016 - 2017
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
СМЕННЫЕ РЕЖУЩИЕ НАКОНЕЧНИКИ (TIPS)
GOLD TWIST - хвостовик WELDON - укороченный
GOLD TWIST - хвостовик WELDON - удлиненный
| Геометрия "P" (Сталь) | Геометрия "M" (Нержавеющая сталь) | Геометрия "K" (Чугун) | Диаметр D, мм | Диаметр D, дюйм | Размер S, дюйм | Размер гнезда | Марка сплава |
|---|---|---|---|---|---|---|---|
| TPA2250R01 | TMA2250R01 | TKA2250R01 | 22.5 | 0.8858 | 0.390 | 22 | IN2505 |
| TPA2260R01 | TMA2260R01 | TKA2260R01 | 22.6 | 0.8898 | 0.390 | 22 | IN2505 |
| TPA2270R01 | TMA2270R01 | TKA2270R01 | 22.7 | 0.8937 | 0.390 | 22 | IN2505 |
| TPA2280R01 | TMA2280R01 | TKA2280R01 | 22.8 | 0.8976 | 0.390 | 22 | IN2505 |
| TPA2290R01 | TMA2290R01 | TKA2290R01 | 22.9 | 0.9016 | 0.390 | 22 | IN2505 |
| TPA2300R01 | TMA2300R01 | TKA2300R01 | 23.0 | 0.9055 | 0.413 | 23 | IN2505 |
| TPA2310R01 | TMA2310R01 | TKA2310R01 | 23.1 | 0.9094 | 0.413 | 23 | IN2505 |
| TPA2320R01 | TMA2320R01 | TKA2320R01 | 23.2 | 0.9134 | 0.413 | 23 | IN2505 |
| TPA2330R01 | TMA2330R01 | TKA2330R01 | 23.3 | 0.9173 | 0.413 | 23 | IN2505 |
| TPA2340R01 | TMA2340R01 | TKA2340R01 | 23.4 | 0.9213 | 0.413 | 23 | IN2505 |
| TPA2350R01 | TMA2350R01 | TKA2350R01 | 23.5 | 0.9252 | 0.413 | 23 | IN2505 |
| TPA2360R01 | TMA2360R01 | TKA2360R01 | 23.6 | 0.9291 | 0.413 | 23 | IN2505 |
| TPA2370R01 | TMA2370R01 | TKA2370R01 | 23.7 | 0.9331 | 0.413 | 23 | IN2505 |
| TPA2380R01 | TMA2380R01 | TKA2380R01 | 23.8 | 0.9370 | 0.413 | 23 | IN2505 |
| TPA2390R01 | TMA2390R01 | TKA2390R01 | 23.9 | 0.9409 | 0.413 | 23 | IN2505 |
| TPA2400R01 | TMA2400R01 | TKA2400R01 | 24.0 | 0.9449 | 0.433 | 24 | IN2505 |
| TPA2410R01 | TMA2410R01 | TKA2410R01 | 24.1 | 0.9488 | 0.433 | 24 | IN2505 |
| TPA2420R01 | TMA2420R01 | TKA2420R01 | 24.2 | 0.9528 | 0.433 | 24 | IN2505 |
| TPA2430R01 | TMA2430R01 | TKA2430R01 | 24.3 | 0.9567 | 0.433 | 24 | IN2505 |
| TPA2440R01 | TMA2440R01 | TKA2440R01 | 24.4 | 0.9606 | 0.433 | 24 | IN2505 |
| TPA2450R01 | TMA2450R01 | TKA2450R01 | 24.5 | 0.9646 | 0.433 | 24 | IN2505 |
| TPA2460R01 | TMA2460R01 | TKA2460R01 | 24.6 | 0.9685 | 0.433 | 24 | IN2505 |
| TPA2470R01 | TMA2470R01 | TKA2470R01 | 24.7 | 0.9724 | 0.433 | 24 | IN2505 |
| TPA2480R01 | TMA2480R01 | TKA2480R01 | 24.8 | 0.9764 | 0.433 | 24 | IN2505 |
| TPA2490R01 | TMA2490R01 | TKA2490R01 | 24.9 | 0.9803 | 0.433 | 24 | IN2505 |
| TPA2500R01 | TMA2500R01 | TKA2500R01 | 25.0 | 0.9843 | 0.433 | 25 | IN2505 |
| TPA2510R01 | TMA2510R01 | TKA2510R01 | 25.1 | 0.9882 | 0.433 | 25 | IN2505 |
| TPA2520R01 | TMA2520R01 | TKA2520R01 | 25.2 | 0.9921 | 0.433 | 25 | IN2505 |
| TPA2530R01 | TMA2530R01 | TKA2530R01 | 25.3 | 0.9961 | 0.433 | 25 | IN2505 |
| TPA2540R01 | TMA2540R01 | TKA2540R01 | 25.4 | 1.0000 | 0.433 | 25 | IN2505 |
| TPA2550R01 | TMA2550R01 | TKA2550R01 | 25.5 | 1.0039 | 0.433 | 25 | IN2505 |
| TPA2560R01 | TMA2560R01 | TKA2560R01 | 25.6 | 1.0079 | 0.433 | 25 | IN2505 |
| TPA2570R01 | TMA2570R01 | TKA2570R01 | 25.7 | 1.0118 | 0.433 | 25 | IN2505 |
| TPA2580R01 | TMA2580R01 | TKA2580R01 | 25.8 | 1.0157 | 0.433 | 25 | IN2505 |
| TPA2590R01 | TMA2590R01 | TKA2590R01 | 25.9 | 1.0197 | 0.433 | 25 | IN2505 |
* Геометрия для алюминия доступна по спецзаказу: обозначение TNA.
