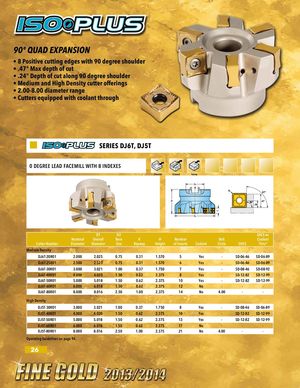

SERIES DJ6T, DJ5T 0 DEGREE LEAD FACEMILL WITH 8 INDEXES Shoulder Channel Facing D2 K R 87º H 90º .47 .24 .47 D1 D1 D2 SHCS w/ Nominal Overall Bore K H Number Bolt Coolant R .47 Cutter Number Diameter Diameter Size Keyway Height of Inserts Coolant Circle SHCS .26 Thru* Medium Density SNGU ... N DJ6T-20R01 2.000 2.025 0.75 0.31 1.570 5 Yes - SD-06-46 SD-06-89 DJ6T-25R01 2.500 2.523 0.75 0.31 1.570 6 Yes - SD-06-46 SD-06-89 DJ6T-30R01 3.000 3.021 1.00 0.37 1.750 7 Yes C - .47 SD-08-46 SD-08-92 .26 DJ6T-40R01 4.000 4.020 1.50 0.62 2.375 8 Yes - SD-12-82 SD-12-99 DJ6T-50R01 5.000 5.018 1.50 0.62 2.375 10 ... ANTNYes SNGU - SD-12-82 SD-12-99 a DJ6T-60R01 6.000 6.018 1.50 0.62 2.375 12 No - - - DJ6T-80R01 8.000 8.016 2.50 1.00 2.375 14 No 4.00 a - - High Density DJ5T-30R01 3.000 3.021 1.00 0.37 1.750 8 Yes R - .47 SD-08-46 .26 SD-06-89 DJ5T-40R01 4.000 4.020 1.50 0.62 2.375 10 Yes - SD-12-82 SD-12-99 SNGU ... TN 2º DJ5T-50R01 5.000 5.018 1.50 0.62 2.375 13 Yes a - SD-12-82 SD-12-99 DJ5T-60R01 6.000 6.018 1.50 0.62 2.375 17 No -a 2º - - DJ5T-80R01 8.000 8.016 2.50 1.00 2.375 21 No 4.00 - - Operating Guidelines on page 94. 87˚ 26 12 90˚ 6.7
