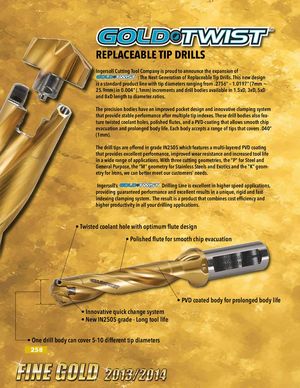

REPLACEABLE TIP DRILLS Ingersoll Cutting Tool Company is proud to announce the expansion of : The Next Generation of Replaceable Tip Drills. This new design is a standard product line with tip diameters ranging from .2756” – 1.0197” (7mm ~ 25.9mm) in 0.004” (.1mm) increments and drill bodies available in 1.5xD, 3xD, 5xD and 8xD length to diameter ratios. The precision bodies have an improved pocket design and innovative clamping system that provide stable performance after multiple tip indexes. These drill bodies also fea- ture twisted coolant holes, polished flutes, and a PVD-coating that allows smooth chip evacuation and prolonged body life. Each body accepts a range of tips that covers .040” (1mm). The drill tips are offered in grade IN2505 which features a multi-layered PVD coating that provides excellent performance, improved wear resistance and increased tool life in a wide range of applications. With three cutting geometries, the “P” for Steel and General Purpose, the “M” geometry for Stainless Steels and Exotics and the “K” geom- etry for Irons, we can better meet our customers’ needs. Ingersoll’s Drilling Line is excellent in higher speed applications, providing guaranteed performance and excellent results in a unique, rigid and fast- indexing clamping system. The result is a product that combines cost efficiency and higher productivity in all your drilling applications. • Twisted coolant hole with optimum flute design • Polished flute for smooth chip evacuation • PVD coated body for prolonged body life • Innovative quick change system • New IN2505 grade - Long tool life • One drill body can cover 5-10 different tip diameters 258
