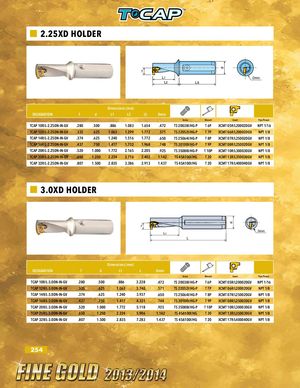

Общий каталог Ingersoll 2013 - 2014 - страница 254

d d 2.25XD HOLDER f L1 Dmin L2 LS Dimensions (mm) DESIGNATION f d L1 L2 LS Dmin Screw Wrench Insert Pipe Thread TCAP 10R/L-2.25DN-IN-GV .280 .500 .886 1.083 1.654 .472 TS 20038I/HG-P T 6P XCMT 05R/L200020GV NPT 1/16 TCAP 12R/L-2.25DN-IN-GV .335 .625 1.063 1.299 1.772 .571 TS 22052I/HG-P T 7P XCMT 06R/L200020GV NPT 1/8 TCAP 14R/L-2.25DN-IN-GV .374 .625 1.240 1.516 1.772 .650 TS 25064I/HG-P T 8P XCMT 07R/L250020GV NPT 1/8 TCAP 16R/L-2.25DN-IN-GV .437 .750 1.417 1.732 1.968 .748 TS 30100I/HG-P T 9P XCMT 08R/L250020GV NPT 1/8 TCAP 20R/L-2.25DN-IN-GV .520 1.000 1.772 2.165 2.205 .925 TS 35088I/HG-P T 10P XCMT 10R/L300030GV NPT 1/8 TCAP 25R/L-2.25DN-IN-GV .650 1.250 2.224 2.716 2.402 1.142 TS 45A100I/HG T 20 XCMT 13R/L350030GV NPT 1/8 TCAP 32R/L-2.25DN-IN-GV .807 1.500 2.835 3.386 2.913 1.437 TS 45A100I/HG T 20 XCMT 17R/L400040GV NPT 1/8 3.0XD HOLDER f L1 Dmin L Dimensions (mm) DESIGNATION f d L1 L Dmin Screw Wrench Insert Pipe Thread TCAP 10R/L-3.0DN-IN-GV .280 .500 .886 3.228 .472 TS 20038I/HG-P T 6P XCMT 05R/L200020GV NPT 1/16 TCAP 12R/L-3.0DN-IN-GV .335 .625 1.063 3.740 .571 TS 22052I/HG-P T 7P XCMT 06R/L200020GV NPT 1/8 TCAP 14R/L-3.0DN-IN-GV .374 .625 1.240 3.937 .650 TS 25064I/HG-P T 8P XCMT 07R/L250020GV NPT 1/8 TCAP 16R/L-3.0DN-IN-GV .437 .750 1.417 4.331 .748 TS 30100I/HG-P T 9P XCMT 08R/L250020GV NPT 1/8 TCAP 20R/L-3.0DN-IN-GV .520 1.000 1.772 5.118 .925 TS 35088I/HG-P T 10P XCMT 10R/L300030GV NPT 1/8 TCAP 25R/L-3.0DN-IN-GV .650 1.250 2.224 5.906 1.142 TS 45A100I/HG T 20 XCMT 13R/L350030GV NPT 1/8 TCAP 32R/L-3.0DN-IN-GV .807 1.500 2.835 7.283 1.437 TS 45A100I/HG T 20 XCMT 17R/L400040GV NPT 1/8 254
