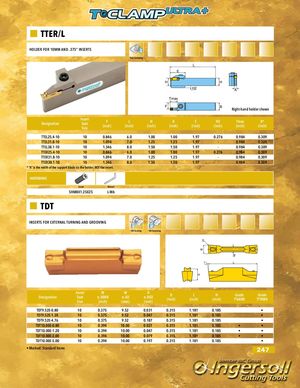

TTER/L HOLDER FOR 10MM AND .375“ INSERTS Face Grooving L E H H H2 A Tmax F B Right-hand holder shown Designation InsertSeatSize F(inch) L(inch) H(inch) B(inch) E(inch) H2(inch) Tmax(inch) A*(inch) TTEL25.4-10 10 0.846 6.0 1.00 1.00 1.97 0.276 0.984 0.309 TTEL31.8-10 10 1.094 7.0 1.25 1.25 1.97 - 0.984 0.309 TTEL38.1-10 10 1.346 8.0 1.50 1.50 1.97 - 0.984 0.309 TTER25.4-10 10 0.846 6.0 1.00 1.00 1.97 0.276 0.984 0.309 TTER31.8-10 10 1.094 7.0 1.25 1.25 1.97 - 0.984 0.309 TTER38.1-10 10 1.346 8.0 1.50 1.50 1.97 - 0.984 0.309 * “A” is the width of the support blade on the holder, NOT the insert. HARDWARE Screw Wrench SHM8X1.25X25 L-W6 TDT INSERTS FOR EXTERNAL TURNING AND GROOVING OD Turning OD Grooving R W B 7° L H Designation Insert W WSeat±.0008±.02Size(inch)(mm)R±.002(inch) B(inch) L(inch) H Grade Grade(inch)TT6080TT9080 TDT9.52E-0.80 10 0.375 9.52 0.031 0.315 1.181 0.185 • TDT9.52E-1.20 10 0.375 9.52 0.047 0.315 1.181 0.185 • TDT9.52E-4.76 10 0.375 9.52 0.187 0.315 1.181 0.185 • TDT10.00E-0.80 10 0.394 10.00 0.031 0.315 1.181 0.185 • • TDT10.00E-1.20 10 0.394 10.00 0.047 0.315 1.181 0.185 • • TDT10.00E-2.00 10 0.394 10.00 0.079 0.315 1.181 0.185 • • TDT10.00E-5.00 10 0.394 10.00 0.197 0.315 1.181 0.185 • • Marked: Standard items 247
