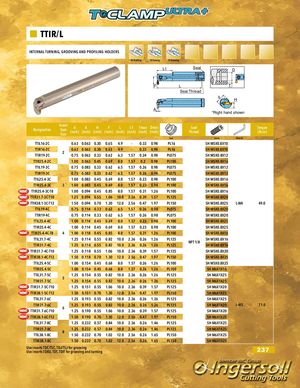

TTIR/L
Державки для внутреннего точения, нарезки канавок и профилирования
Профилирование внутренних поверхностей, внутреннее точение, внутренние канавки.
| Designation | Insert Seat Size | d (inch) | A (inch) | H (inch) | F (inch) | L (inch) | L1 (inch) | Tmax (inch) | Dmin (inch) | Seal Thread | Screw | Wrench | Torque (lb-in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TTIL16-2C | 2 | 0.63 | 0.063 | 0.30 | 0.65 | 4.9 | - | 0.33 | 0.98 | PL16 | SH M5X0.8X10 | ||
| TTIR16-2C | 2 | 0.63 | 0.063 | 0.30 | 0.65 | 4.9 | - | 0.33 | 0.98 | PL16 | SH M5X0.8X10 | ||
| TTIR19-2C | 2 | 0.75 | 0.063 | 0.33 | 0.62 | 6.3 | 1.57 | 0.24 | 0.98 | PL075 | SH M5X0.8X12 | ||
| TTIR25.4-2C | 2 | 1.00 | 0.063 | 0.45 | 0.69 | 8.0 | 1.57 | 0.2 | 0.98 | PL100 | SH M5X0.8X16 | ||
| TTIL19-3C | 3 | 0.75 | 0.083 | 0.33 | 0.62 | 6.5 | 1.57 | 0.26 | 0.98 | PL075 | SH M5X0.8X12 | ||
| TTIR19-3C | 3 | 0.75 | 0.083 | 0.33 | 0.62 | 6.5 | 1.57 | 0.26 | 0.98 | PL075 | SH M5X0.8X12 | ||
| TTIL25.4-3C | 3 | 1.00 | 0.083 | 0.45 | 0.69 | 8.0 | 1.57 | 0.23 | 0.98 | PL100 | SH M5X0.8X16 | ||
| TTIR25.4-3C | 3 | 1.00 | 0.083 | 0.45 | 0.69 | 8.0 | 1.57 | 0.23 | 0.98 | PL100 | SH M5X0.8X16 | ||
| TTIR25.4-3C-T8 | 3 | 1.00 | 0.094 | 0.45 | 0.85 | 8.0 | 1.57 | 0.31 | 1.26 | PL100 | SH M5X0.8X16 | ||
| TTIR31.7-3C-T10 | 3 | 1.25 | 0.094 | 0.55 | 1.06 | 10.0 | 2.36 | 0.39 | 1.57 | PL125 | SH M5X0.8X20 | ||
| TTIR38.1-3C-T12 | 3 | 1.50 | 0.094 | 0.70 | 1.30 | 12.0 | 2.56 | 0.47 | 1.97 | PL150 | SH M5X0.8X25 | L-W4 | 49.0 |
| TTIL19-4C | 4 | 0.75 | 0.114 | 0.33 | 0.62 | 6.5 | 1.57 | 0.26 | 0.98 | PL075 | SH M5X0.8X20 | ||
| TTIR19-4C | 4 | 0.75 | 0.114 | 0.33 | 0.62 | 6.5 | 1.57 | 0.26 | 0.98 | PL075 | SH M5X0.8X20 | ||
| TTIL25.4-4C | 4 | 1.00 | 0.114 | 0.45 | 0.69 | 8.0 | 1.57 | 0.23 | 0.98 | PL100 | SH M5X0.8X25 | ||
| TTIR25.4-4C | 4 | 1.00 | 0.114 | 0.45 | 0.69 | 8.0 | 1.57 | 0.23 | 0.98 | PL100 | SH M5X0.8X25 | ||
| TTIR25.4-4C-T8 | 4 | 1.00 | 0.118 | 0.45 | 0.85 | 8.0 | 1.57 | 0.31 | 1.26 | PL100 | SH M5X0.8X16 | ||
| TTIL31.7-4C | 4 | 1.25 | 0.114 | 0.55 | 0.82 | 10.0 | 2.36 | 0.26 | 1.26 | PL125 / NPT 1/8 | SH M5X0.8X16 | ||
| TTIR31.7-4C | 4 | 1.25 | 0.114 | 0.55 | 0.82 | 10.0 | 2.36 | 0.26 | 1.26 | PL125 | SH M5X0.8X16 | ||
| TTIR31.7-4C-T10 | 4 | 1.25 | 0.118 | 0.55 | 1.06 | 10.0 | 2.36 | 0.39 | 1.57 | PL125 | SH M5X0.8X20 | ||
| TTIR38.1-4C-T12 | 4 | 1.50 | 0.118 | 0.70 | 1.30 | 12.0 | 2.56 | 0.47 | 1.97 | PL150 | SH M5X0.8X25 | ||
| TTIL25.4-5C | 5 | 1.00 | 0.154 | 0.45 | 0.68 | 8.0 | 1.57 | 0.26 | 1.26 | PL100 | SH M5X0.8X25 | ||
| TTIR25.4-5C | 5 | 1.00 | 0.154 | 0.45 | 0.68 | 8.0 | 1.57 | 0.26 | 1.26 | PL100 | SH M6X1X16 | ||
| TTIL31.7-5C | 5 | 1.25 | 0.154 | 0.55 | 0.82 | 10.0 | 2.36 | 0.26 | 1.26 | PL125 | SH M6X1X25 | ||
| TTIR31.7-5C | 5 | 1.25 | 0.154 | 0.55 | 0.82 | 10.0 | 2.36 | 0.26 | 1.26 | PL125 | SH M6X1X25 | ||
| TTIR31.7-5C-T10 | 5 | 1.25 | 0.151 | 0.55 | 1.06 | 10.0 | 2.36 | 0.39 | 1.57 | PL125 | SH M6X1X20 | ||
| TTIR38.1-5C-T12 | 5 | 1.50 | 0.151 | 0.70 | 1.30 | 12.0 | 2.56 | 0.47 | 1.97 | PL150 | SH M6X1X25 | ||
| TTIL31.7-6C | 6 | 1.25 | 0.193 | 0.55 | 0.82 | 10.0 | 2.36 | 0.26 | 1.26 | PL125 | SH M6X1X25 | ||
| TTIR31.7-6C | 6 | 1.25 | 0.193 | 0.55 | 0.82 | 10.0 | 2.36 | 0.26 | 1.26 | PL125 | SH M6X1X20 | L-W5 | 71.0 |
| TTIR31.7-6C-T10 | 6 | 1.25 | 0.190 | 0.55 | 1.06 | 10.0 | 2.36 | 0.39 | 1.57 | PL125 | SH M6X1X20 | ||
| TTIR38.1-6C-T12 | 6 | 1.50 | 0.190 | 0.70 | 1.30 | 12.0 | 2.56 | 0.47 | 1.97 | PL150 | SH M6X1X25 | ||
| TTIL31.7-8C | 8 | 1.25 | 0.232 | 0.57 | 0.84 | 10.0 | 2.36 | 0.26 | 1.46 | PL125 | SH M6X1X25 | ||
| TTIR31.7-8C | 8 | 1.25 | 0.232 | 0.57 | 0.84 | 10.0 | 2.36 | 0.26 | 1.46 | PL125 | SH M6X1X25 | ||
| TTIL38.1-8C | 8 | 1.50 | 0.232 | 0.70 | 1.02 | 12.0 | 2.56 | 0.26 | 1.65 | PL150 | SH M6X1X25 | ||
| TTIR38.1-8C | 8 | 1.50 | 0.232 | 0.70 | 1.02 | 12.0 | 2.56 | 0.26 | 1.65 | PL150 | SH M6X1X25 |
Использовать пластины TDC/TSC, TDJ/TSJ для нарезки канавок.
Использовать пластины TDXU, TDT, TDIT для нарезки канавок и точения.
